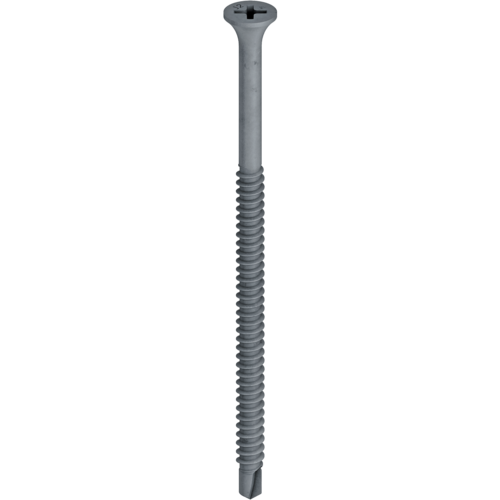

DABO® screw TKR-4-4.8

Specification

  • Applications

    • To fix roofing membrane to substructures made of sheet steel ≥ 1,5 mm ≤ 4,0 mm, timber or wood-based material
    • For combination with EJOT® stress plates
  • Properties

    • Case-hardened steel
    • Climadur coated - high-quality coating to improve corrosion protection (15 Runden Kesternich, DIN 50018, 1997)
    • Can be delivered belted for EJOT® ECOSET installation tool or pre-assembled with EJOT® stress plates HTK for EJOT® ECOSET HTK installation tool.
    • With bugle head
  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity: 4.0 mm
    • Drive: Cross recess PH 2

    Length determination (min. lengths)

    • Sheet steel: Insulation thickness + 20 mm
    • Timber: Insulation thickness + 30 mm
