ISO-BLOCO 600
Seals against wind, dust and driving rain
ISO-Profil filler strips
Specification
-
Applications

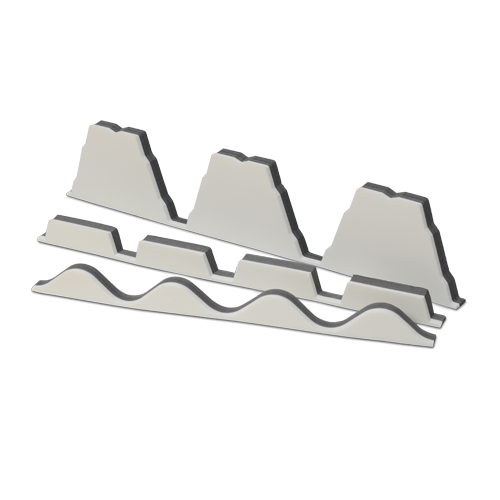

ISO-PROFILE filler strips are profile-cut tapes of high-quality PE foam material. They are used in metal and industrial building structures to seal and insulate trapezoidal and wave profile sheets. They have the optimum form for a wide range of European-manufactured profiled me
-
Benefits
- Reliable and permanent sealing of trapezoidal and corrugated metal sheeting
- Sound and thermal insulation
- Roofing applications (roof ridge, eaves)
- Facade (parapet connections)
-
Description
- Available for many types of profiled sheets
- Fine cells with a consistent smooth surface
- Permanently elastic as well as having form stability
- Fire protection classification B2, B1 as a special property
- Conforms to the requirements of the new IFBS guidelines for joint tightness on lightweight steel constructions
- High and regularly examined product quality
Note
ISO-PROFILE filler strips must be stored in a dry place until installation
Filter
Selected filters
| Orderidentifier | Article Number | Profile | Stiffening corrugation | Strength mm | Unit |
|---|---|---|---|---|---|
| Corrugated sheet 18 / 76 - Maas / Laukien / Arcelor / Joriside / Münker / SAB / Siegmetall | 0080001876 | Welle 18 / 76 | - | 30.0 | 1 |
Specifications
|
|||||
| 22 / 214 large - Maas / Laukien / Feilmeier | 0080022214 | Welle 18 / 76 | large | 30.0 | 1 |
Specifications
|
|||||
| 35 / 207 large - Fischer / Maas / Laukien / Feilmeier / Wurzer / SAB / Münker / Hoesch / Joriside | 0080035207 | 35 / 207 | large | 30.0 | 1 |
Specifications
|
|||||
| Kingspan 35 / 333 large | 0080035333 | Kingspan 35 / 333 | large | 30.0 | 1 |
Specifications
|
|||||
| Lattonedil 37 / 200 large | 0080037200 | large | 1 | ||
Specifications
|
|||||
| 39 / 333 large - Arcelor / Münker | 0080039333 | 39 / 333 | large | 30.0 | 1 |
Specifications
|
|||||
| ROMA 42 / 333 large | 0080042333 | ROMA 42 / 333 | large | 30.0 | 1 |
Specifications
|
|||||
| 45 / 333 large - Mass / Laukien / Wurzer / SAB | 0080045333 | 45 / 333 | large | 30.0 | 1 |
Specifications
|
|||||
| 50 / 250 large - Maas / Laukien | 0080050250 | 50 / 250 | large | 30.0 | 1 |
Specifications
|
|||||
| Corrugated sheet 55 / 177 - Laukien / Eternit / Aluform | 0080055177 | Welle 55 / 177 | 30.0 | 1 | |
Specifications
|
|||||
| 22 / 214 small - Maas / Laukien / Feilmeier | 0080122214 | 22 / 214 | small | 30.0 | 1 |
Specifications
|
|||||
| 35 / 207 small - Fischer / Maas / Laukien / Feilmeier / Wurzer / SAB / Münker / Hoesch / Joriside | 0080135207 | 35 / 207 | small | 30.0 | 1 |
Specifications
|
|||||
| Thyssen 35 / 333 large | 0080135333 | Thyssen 35 / 333 | large | 30.0 | 1 |
Specifications
|
|||||
| 39 / 333 small - Arcelor / Münker | 0080139333 | 39 / 333 | small | 30.0 | 1 |
Specifications
|
|||||
| Fischer DL 40 / 333 large large 1 Fischer DL 40 / 333 large | 0080140333 | 1 | |||
Specifications
|
|||||
| Brucha 42 / 333 large | 0080142333 | Brucha 42 / 333 | large | 30.0 | 1 |
Specifications
|
|||||
| 45 / 333 small - Maas / Laukien / Wurzer / SAB | 0080145333 | 45 / 333 | small | 30.0 | 1 |
Specifications
|
|||||
| 50 / 250 small - Maas / Laukien | 0080150250 | 50 / 250 | small | 30.0 | 1 |
Specifications
|
