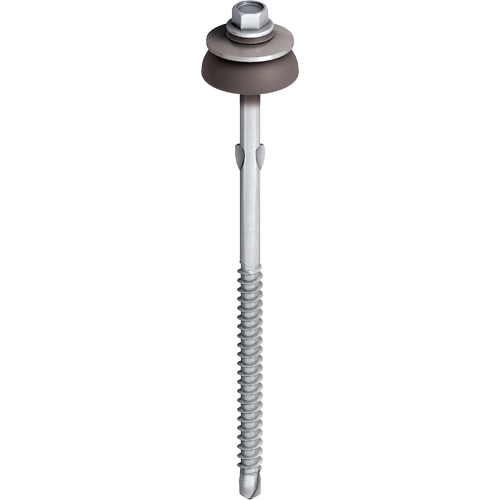

EJOT® self-drilling screw JT4-FZ-6.5

JT4-FZ-6,5

Specification

  • Applications

    • Fastening corrugated fibre cement sheets to timber substructure

    Note

    Suitable for covering with fibre cement corrugated sheet profile 177/51 P5 and P6 to timber substructure without insulation. For the dimensioning and the use of fastening materials please note the manufacturer's instructions for use as well as the national approvals.

  • Properties

    • A2 stainless steel
    • Pre-assembled FZD sealing washer
    • A2 stainless steel washer
    • Screw wings save additional drilling into the corrugated slabs
    • Reduced forcing tension

  • Technical specifications

    • Diameter: 6.5 mm
    • Drive: Hexagon A/F8
Orderidentifier Article Number ø mm Length mm Unit
JT4-FZ-6.5x130-FZD 3515675400 6.5 130.0 100

Specifications

ø
6.5
Length
130.0
Fastener material
Stainless Steel
Orderidentifier
JT4-FZ-6.5x130-FZD
Unit
100
