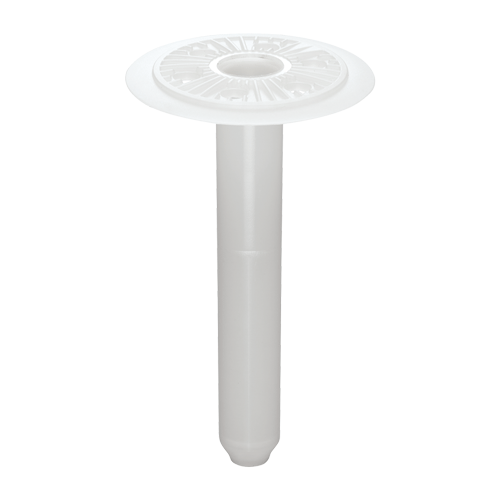

EJOT® TE 60/110
Specification
-
Application range and properties
- For fastening External Thermal Insulation Composite Systems with problematic substrates
- To combine with EJOT SDF-S plus 8UB
- Available in two lengths
- With European Technical Assessment
- For surface fixed installation
- Can be combined with additional washers EJOT SBL 140 plus and EJOT VT 90
- Washer diameter: 60 mm
- Special sealing plug made of polystyrene (EPS) included in the scope of supply
-
Technical Data
- Shaft length EJOT TE 60/50: 50mm
- Shaft length EJOT TE 60/110: 110mm
- Washer diameter: 60 mm
- Srew drive: RX T30
- Drill hole depth h1 ≥ 80 mm
- Embedment depth hef ≥ 70 mm
- Point thermal transmission EJOT TE 60/50 with insulation material thicknesses 60 - 180 mm: 0.002 W/K
- Point thermal transmission EJOT TE 60/110 with insulation material thicknesses 120 - 150 mm: 0.000 W/K
- Point thermal transmission EJOT TE 60/110 with insulation material thicknesses 150 - 240 mm: 0.001 W/K
- European Technical Assessment ETA-04/0064
-
Characteristic loads when combined with EJOT SDF-S plus UB:
- Shaft length EJOT TE 60/50: 50 mm
- Shaft length EJOT TE 60/110: 110 mm
- Washer Diameter: 60 mm
- Screw drive: TX30
- Drill hole depth h1: ≥ 80 mm
- Embedment depth hef: ≥ 70 mm
- Point thermal transmission Χ EJOT TE 60/50 with insulation thicknesses 60 - 180 mm: 0.002 W/K
- Point thermal transmission Χ EJOT TE 60/110 with insulation thicknesses 120 - 150 mm: 0.00 W/K
- Point thermal transmission Χ EJOT TE 60/110 with insulation thicknesses 150 - 240 mm: 0.001 W/K
- European Technical Assessment: ETA-04/0064
ETICS products are only available from system suppliers
| Orderidentifier | Article Number | Washer diameter mm | Length mm | Unit | ||
|---|---|---|---|---|---|---|
| Tube-washer-TE-60-110 | 8533110000 | 60.0 | 110.0 | 70.0 | 80.0 | 100 |
