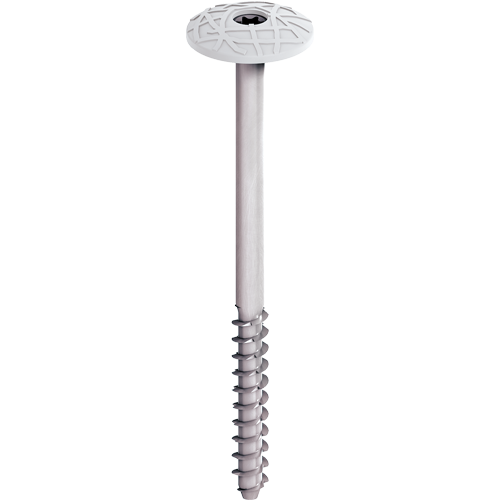

Insulation screw for direct installation into concrete DDS


Specification
-
Applications
- Fastening ceiling and acoustic insulation boards to concrete substrates
-
Properties
- Steel screw with self-drilling thread for a secure fastening
- Easy installation
- Short embedment depth
- Plastic injection moulded head with wood wool structure available in beige or white
- Can be used in conjunction with the DDT 70 washer for load spreading
-
Technical specifications
- Head diameter incl. plastic injection moulding:25 mm
- Drill hole diameter 6 mm
- Embedment depth in concrete: 20 mm
- Screw drive: TX30
- Recommended substrate Concrete
ETICS products are only available from system suppliers
Filter
Select system
-
other
Select color
- beige
- white
- white coated
Selected filters
Orderidentifier | Article Number | Length mm | Insulation thickness mm | Inner Hole Ø mm | Pilot Hole Ø mm | Unit | |||
---|---|---|---|---|---|---|---|---|---|
EJOT DDS 085 | 5919085682 | 85.0 | 60.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | white coated | 500 |
Specifications
|
|||||||||
EJOT DDS 100 | 5919100682 | 100.0 | 75.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | white coated | 500 |
Specifications
|
|||||||||
EJOT DDS 135 | 5919135682 | 135.0 | 110.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | white coated | 500 |
Specifications
|
|||||||||
EJOT DDS 050 white | 8419050740 | 50.0 | 25.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | white | 100 |
Specifications
|
|||||||||
EJOT DDS 050 beige | 8419050780 | 50.0 | 25.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | beige | 100 |
Specifications
|
|||||||||
EJOT DDS 075 white | 8419075740 | 75.0 | 50.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | white | 100 |
Specifications
|
|||||||||
EJOT DDS 075 beige | 8419075780 | 75.0 | 50.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | beige | 100 |
Specifications
|
|||||||||
EJOT DDS 085 white | 8419085740 | 85.0 | 60.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | white | 100 |
Specifications
|
|||||||||
EJOT DDS 085 beige | 8419085780 | 85.0 | 60.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | beige | 100 |
Specifications
|
|||||||||
EJOT DDS 100 white | 8419100740 | 100.0 | 75.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | white | 100 |
Specifications
|
|||||||||
EJOT DDS 100 beige | 8419100780 | 100.0 | 75.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | beige | 100 |
Specifications
|
|||||||||
EJOT DDS 125 white | 8419125740 | 125.0 | 100.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | white | 100 |
Specifications
|
|||||||||
EJOT DDS 125 beige | 8419125780 | 125.0 | 100.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | beige | 100 |
Specifications
|
|||||||||
EJOT DDS 135 beige | 8419135780 | 135.0 | 110.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | beige | 100 |
Specifications
|
|||||||||
EJOT DDS 150 white | 8419150740 | 150.0 | 125.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | white | 100 |
Specifications
|
|||||||||
EJOT DDS 150 beige | 8419150780 | 150.0 | 125.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | beige | 100 |
Specifications
|
|||||||||
EJOT DDS 175 white | 8419175740 | 175.0 | 150.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | white | 100 |
Specifications
|
|||||||||
EJOT DDS 175 beige | 8419175780 | 175.0 | 150.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | beige | 100 |
Specifications
|
|||||||||
EJOT DDS 200 white | 8419200740 | 200.0 | 175.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | white | 100 |
Specifications
|
|||||||||
EJOT DDS 200 beige | 8419200780 | 200.0 | 175.0 | 6.0 | 6.0 | 30.0 | screw-in-anchor | beige | 100 |
Specifications
|
