ejotherm® STR H A2

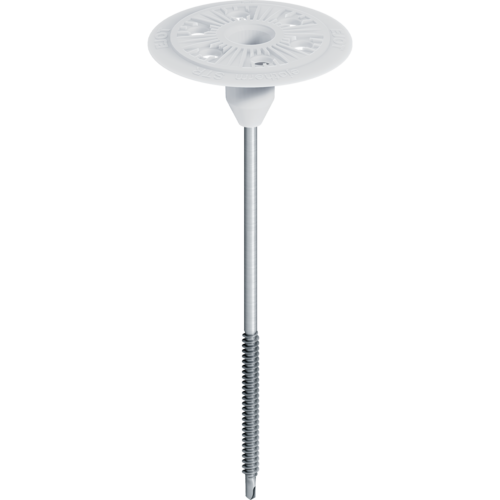

-STR-H-E-STR-H-A2-1200x1200-500Wx500H

Specification

  • Applications

    Screw fastener for the corrosion resistant fixing of ETICS
    with German DIBt approval



    • For Fermacell boards, cement particle boards, wooden substrates and metal Frame
    • For a corrsion-free fastening
    • For countersunk and surface fixed installation
    • For homogeneous surfaces
    • With German DIBt approval

  • Properties

    • Fastener, consistent of a A2 stainless screw with hardened drill point, included washer and an EPS sealing plug
    • EJOT STR principle with ejotherm STR cap for homogeneous surfaces and even rendering - quick and easy without milling dust
    • Countersunk installation in mineral wool insulation boards WAP-zg (type WV) in combination with ejotherm VT 2G
    • No drilling necassary
    • Surface fixed installation with ejotherm STR plug
    • Permanent contact pressure
    • 100% Setting control: the countersunk installation of the washer indicates safe anchorage

  • Technical specifications

    • Screw diameter: 6 mm
    • Washer diameter: 60 mm
    • Screw-in depth: 30 - 40 mm
    • Screw drive: TX25
    • Point thermal transmission χ:
      countersunk installation in timber substrates: 0.001 W/K
      surface fixed installation in timber substrates: 0.002 W/K
    • German DIBt approval: Z-9.1-822

    Tensile strength from the substrate:


    • Solid wood, laminated timber,laminated beams or cross laminated timber made of softwood
          Minimum screw-in depth: 35 mm oder 24 mm (embedment)
          Designed load Fax,90,Rd: 0.94kN
    • OSB boards
          Minimum screw-in depth: 15 mm (thread engagement)
          Designed load Fax,90,Rd: 0.56kN
    • Synthetic resin bonded chipboard
          Minimum screw-in depth: 16 mm (thread engagement)
          Designed load Fax,90,Rd: 0.56kN
    • Cement particle board
          Minimum embedment depth: 16 mm (thread engagement)
          Designed load Fax,90,Rd: 0.56kN

ETICS products are only available from system suppliers

Filter

Selected filters

    Orderidentifier Article Number Washer diameter mm Length mm Construction way Screw-in-/hammer-inanchor Unit
    ejotherm STR H A2 80 8711080666 60.0 80.0 countersank and surface fixed installation screw-in-anchor 100

    Specifications

    Washer diameter
    60.0
    Length
    80.0
    Construction way
    countersank and surface fixed installation
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Orderidentifier
    ejotherm STR H A2 80
    Unit
    100
    ejotherm STR H A2 100 8711100666 60.0 100.0 countersank and surface fixed installation screw-in-anchor 100

    Specifications

    Washer diameter
    60.0
    Length
    100.0
    Construction way
    countersank and surface fixed installation
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Orderidentifier
    ejotherm STR H A2 100
    Unit
    100
    ejotherm STR H A2 120 8711120666 60.0 120.0 countersank and surface fixed installation screw-in-anchor 100

    Specifications

    Washer diameter
    60.0
    Length
    120.0
    Construction way
    countersank and surface fixed installation
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Orderidentifier
    ejotherm STR H A2 120
    Unit
    100
    ejotherm STR H A2 140 8711140666 60.0 140.0 countersank and surface fixed installation screw-in-anchor 100

    Specifications

    Washer diameter
    60.0
    Length
    140.0
    Construction way
    countersank and surface fixed installation
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Orderidentifier
    ejotherm STR H A2 140
    Unit
    100
    ejotherm STR H A2 160 8711160666 60.0 160.0 countersank and surface fixed installation screw-in-anchor 100

    Specifications

    Washer diameter
    60.0
    Length
    160.0
    Construction way
    countersank and surface fixed installation
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Orderidentifier
    ejotherm STR H A2 160
    Unit
    100
    ejotherm STR H A2 180 8711180666 60.0 180.0 countersank and surface fixed installation screw-in-anchor 100

    Specifications

    Washer diameter
    60.0
    Length
    180.0
    Construction way
    countersank and surface fixed installation
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Orderidentifier
    ejotherm STR H A2 180
    Unit
    100
    ejotherm STR H A2 200 8711200666 60.0 200.0 countersank and surface fixed installation screw-in-anchor 100

    Specifications

    Washer diameter
    60.0
    Length
    200.0
    Construction way
    countersank and surface fixed installation
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Orderidentifier
    ejotherm STR H A2 200
    Unit
    100
    ejotherm STR H A2 220 8711220666 60.0 220.0 countersank and surface fixed installation screw-in-anchor 100

    Specifications

    Washer diameter
    60.0
    Length
    220.0
    Construction way
    countersank and surface fixed installation
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Orderidentifier
    ejotherm STR H A2 220
    Unit
    100
