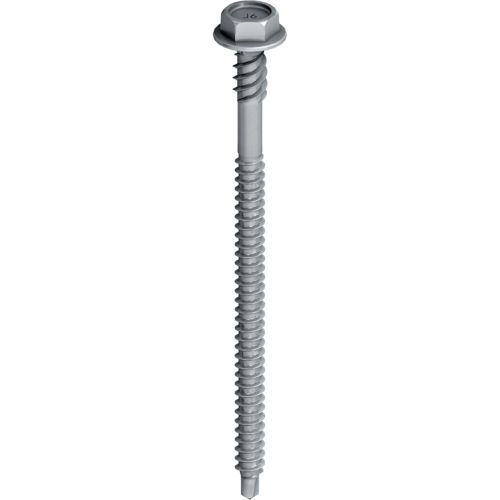

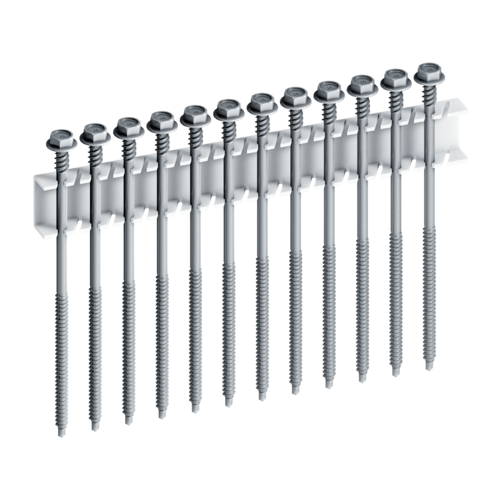

EJOT Dabo® screw SW 8 ET-4.8 belted

Specification

  • Applications

    • To fix roofing membrane to substructures made of sheet steel ≥ 0.75 mm ≤ 1.5 mm, timber or wood-based material
    • For combination with EJOT® stress plates
    • For renovation (cf. current Flat Roof Guideline)
  • Properties

    • A4 stainless steel with hardened steel drill point
    • With high thread to prevent screw head protrusion due to foot traffic
  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity: 1.5 mm
    • Drive: Hexagon A/F8

    Length determination (min. lengths):

    • Sheet steel: Insulation thickness + 20 mm
    • Timber: Insulation thickness + 30 mm

Filter

Selected filters

    Orderidentifier Article Number Length mm Unit
    SW8ET-4.8x100 belted 3439100629 100.0

    Specifications

    Length
    100.0
    Orderidentifier
    SW8ET-4.8x100 belted
    Unit
    3439120629 120.0

    Specifications

    Length
    120.0
    Orderidentifier
    Unit
    AF8ET-4.8x140 belted 3439140629 140.0 750

    Specifications

    Length
    140.0
    Orderidentifier
    AF8ET-4.8x140 belted
    Unit
    750
    AF8ET-4.8x160 belted 3439160629 160.0 750

    Specifications

    Length
    160.0
    Orderidentifier
    AF8ET-4.8x160 belted
    Unit
    750
    AF8ET-4.8x180 belted 3439180629 180.0 750

    Specifications

    Length
    180.0
    Orderidentifier
    AF8ET-4.8x180 belted
    Unit
    750
    AF8ET-4.8x200 belted 3439200629 200.0 750

    Specifications

    Length
    200.0
    Orderidentifier
    AF8ET-4.8x200 belted
    Unit
    750
    AF8ET-4.8x220 belted 3439220629 220.0 750

    Specifications

    Length
    220.0
    Orderidentifier
    AF8ET-4.8x220 belted
    Unit
    750
    AF8ET-4.8x240 belted 3439240629 240.0 750

    Specifications

    Length
    240.0
    Orderidentifier
    AF8ET-4.8x240 belted
    Unit
    750
    AF8ET-4.8x260 belted 3439260629 260.0 750

    Specifications

    Length
    260.0
    Orderidentifier
    AF8ET-4.8x260 belted
    Unit
    750
