EJOT Dabo® screw TKR-ZT6-5.5

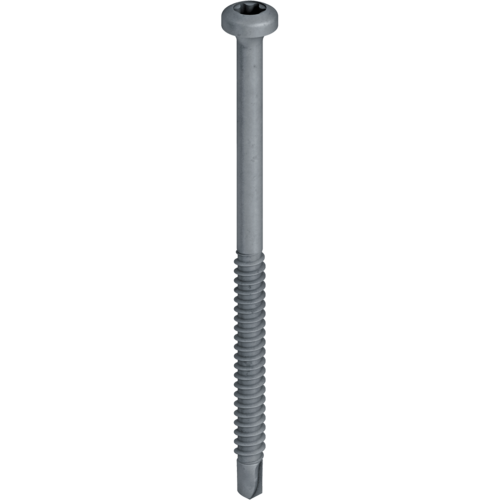

TKR-ZT6-5,5_Pos2

Specification

  • Applications

    • To fix roofing membrane to substructures made of sheet steel ≥ 3.0 mm ≤ 6.0mm mm
    • For combination with EJOT® stress plates

      •



  • Properties

    • Case-hardened steel
    • Climadur coated – high-quality coating to improve corrosion protection (15 Runden Kesternich, DIN 50018, 1997)

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity: 6.0 mm
    • Drive: Hexalobular drive T30

    Length determination (min. lengths)

    • Sheet steel: Insulation thickness + 20 mm
    • Timber: Insulation thickness + 30 mm
