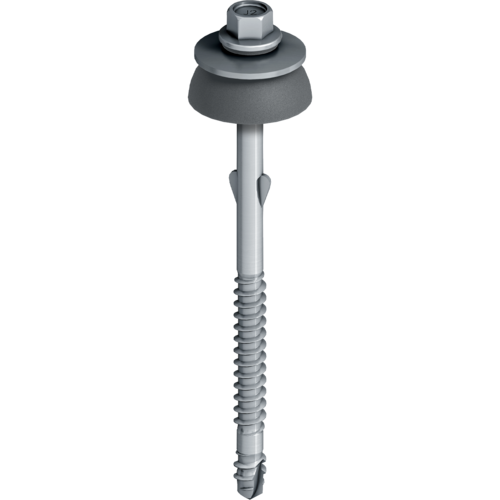

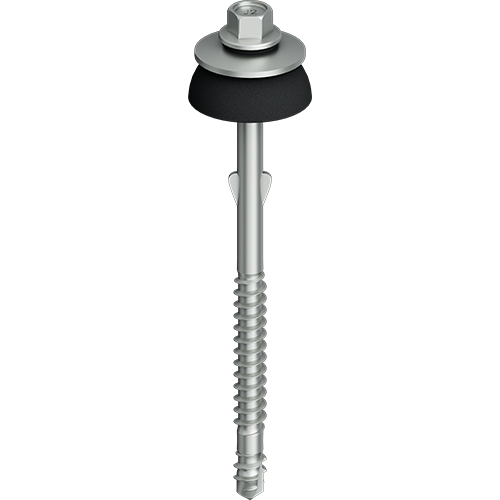

EJOT® self-drilling screw JT2-FZ-F-6.5

JT2-FZ-F-6,5x100-FZD

Specification

  • Applications

    • Fastening corrugated fibre cement sheet to timber substructure

    Note
    Suitable for corrugation 5 when covering with corrugated fibre cement sheet 177/51 to timber substructure without insulation. For the dimensioning and the use of fastening materials please note the manufacturer's instructions for use as well as the national approvals.

  • Properties

    • Case-hardened steel, hot-dip zinc-plated
    • Pre-assembled FZD sealing washer
    • A2 stainless steel washer
    • Screw wings save additional drilling into the corrugated slabs
    • Reduced forcing tension

  • Technical specifications

    • Diameter: 6.5 mm
    • Drive: Hexagon A/F8

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Unit
    JT2-FZ-F-6.5x100-FZD 3515175608 6.5 100.0 100

    Specifications

    ø
    6.5
    Length
    100.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-FZ-F-6.5x100-FZD
    Unit
    100
    JT2-FZ-F-6.5x130-FZD 3515675608 6.5 130.0 100

    Specifications

    ø
    6.5
    Length
    130.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-FZ-F-6.5x130-FZD
    Unit
    100
