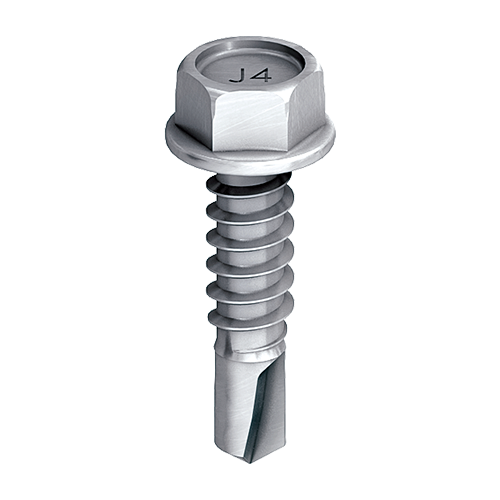

EJOT® self-drilling screw JT4-6-5.5

JT4-6-5,5_500x500

Specification

  • Applications

    • Fastening aluminium profiles to aluminium substructure ≤4 mm

  • Properties

    • A2 stainless steel

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 2.0 + 4.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Fastener material Unit
    JT4-6-5.5x19 7380454301 5.5 0 - none 19.0 Stainless Steel 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    0 - none
    Length
    19.0
    Fastener material
    Stainless Steel
    Clamp thickness
    2.0 - 8.0
    Orderidentifier
    JT4-6-5.5x19
    Unit
    100
    JT4-6-5.5x22-E16 3502111460 5.5 16 22.0 Stainless Steel 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    22.0
    Fastener material
    Stainless Steel
    Clamp thickness
    0.0 - 7.0
    Orderidentifier
    JT4-6-5.5x22-E16
    Unit
    500
    JT4-6-5.5x22 PU100 6380508301 5.5 0 - none 22.0 Stainless Steel 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    0 - none
    Length
    22.0
    Fastener material
    Stainless Steel
    Clamp thickness
    0.0 - 10.0
    Orderidentifier
    JT4-6-5.5x22 PU100
    Unit
    100
    JT4-6-5.5x22 7380508301 5.5 0 - none 22.0 Stainless Steel 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    0 - none
    Length
    22.0
    Fastener material
    Stainless Steel
    Clamp thickness
    0.0 - 10.0
    Orderidentifier
    JT4-6-5.5x22
    Unit
    500
    JT4-6-5.5x30-E16 3502311461 5.5 16 30.0 Stainless Steel 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    30.0
    Fastener material
    Stainless Steel
    Clamp thickness
    0.0 - 15.0
    Orderidentifier
    JT4-6-5.5x30-E16
    Unit
    500
