JT4-LT-XT-3H/4-5.5x19

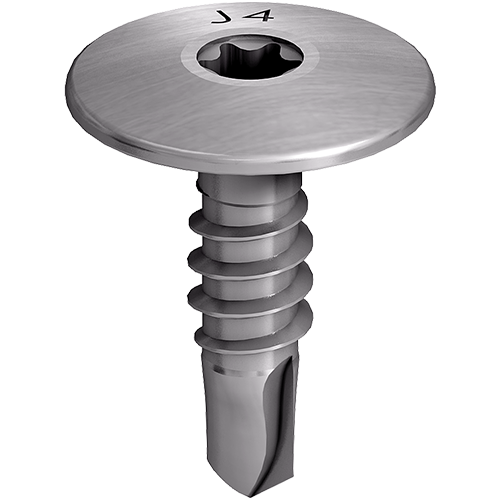

Produktbild

Specification

  • Applications

    • For fastening facade cladding 2.0 mm to aluminum substructures ≤ 2.0 mm
    • Can be combined with LT fixed and sliding point grommets

  • Properties

    • A2 stainless steel
    • Pan head

    Advantages

    • Also available as painted version
    • Flat screw head for aesthetic facade design
    • Wobble-free fastening by using the LT Tool
    • Easy assembly and reliable sliding thanks to optimised free spin zone
    • Centering grommet collar protects the facade cladding surface from scratches
    • No rivet installation gauge or drilling gauge necessary
    • XT cutting ring under the screw head facilitates easy removal of the protective film during the forming of fixed points without centring grommet. Advantage when using the fixed point grommet: all holes in the panel can be pre-drilled with Ø 11 mm
    • Non-threaded part under the screw head allows an intentional further rotation of the screw head after connecting surface

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity (tI vorgelocht) tII: 1.5 - 3.0 mm
    • Drive: Hexalobular drive T25
Orderidentifier Article Number Length mm Panel thickness mm Unit
JT4-LT-XT-3H/4-5,5x19 7384219300 19.0 2.0 - 3.0 500

Specifications

Length
19.0
Panel thickness
2.0 - 3.0
Orderidentifier
JT4-LT-XT-3H/4-5,5x19
Unit
500
