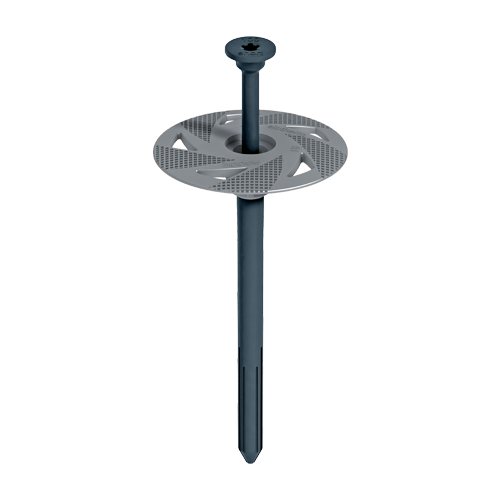

ejotherm® screw-in anchor S1 short

Specification

Applications
- For fastening external thermal insulation systems with a render layer
- Specifically developed for thin insulating materials (20 - 60 mm), for example high-performance insulation > 20 mm as well as reveal boards and ceiling insulation boards > 20 mm
- Installation in all substrates
- Surface fixed installation
Properties
- Approved for all building material categories (A, B, C, D, E)
- Highly comfortable installation and assembly
- Optimised thermal bridge
- Can be mounted with additional washer VT 90 and SBL 140 plus
Technical specifications
- Anchor diameter: 8 mm
- Washer diameter: 60 mm
- Drill hole depth h₁≥ Use category A - D: 40 mm
  Drill hole depth h₁≥ Use category E: 60 mm
- Embedmentdepth h_ef ≥ Use category A - D: 30 mm
  Embedmentdeph h_ef ≥ Use category E: 50 mm
- Screw drive: IPR 30 (5 lobe)
- Insulation material thickness: 20 - 60 mm
- Use categories: A, B, C, D, E
Characteristic loads can be found in the brochure

Orderidentifier	Article Number	Length mm	Substrate categories A-D, Insulation [mm] new building / old building	Substrate category E, Insulation [mm] new building / old building	Unit
ejotherm S1 short 60	8715060570	60.0	20 / --	-- / --	100
Specifications Length 60.0 Substrate categories A-D, Insulation [mm] new building / old building 20 / -- Substrate category E, Insulation [mm] new building / old building -- / -- Orderidentifier ejotherm S1 short 60 Unit 100
ejotherm S1 short 80	8715080570	80.0	40 / 20	20 / --	100
Specifications Length 80.0 Substrate categories A-D, Insulation [mm] new building / old building 40 / 20 Substrate category E, Insulation [mm] new building / old building 20 / -- Orderidentifier ejotherm S1 short 80 Unit 100
ejotherm S1 short 100	8715100570	100.0	60 / 40	40 / 20	100
Specifications Length 100.0 Substrate categories A-D, Insulation [mm] new building / old building 60 / 40 Substrate category E, Insulation [mm] new building / old building 40 / 20 Orderidentifier ejotherm S1 short 100 Unit 100
