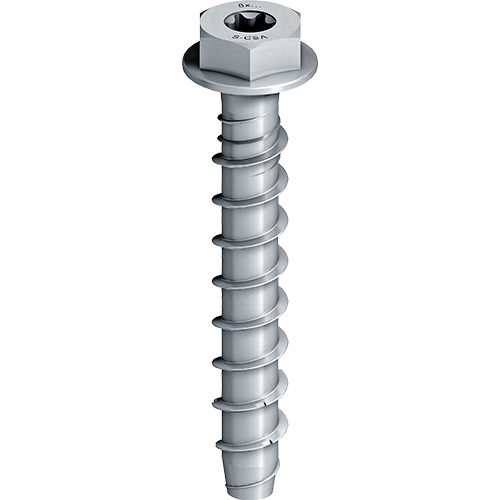

EJOT® Concrete screw JC2-KB

Produktbild1
Produktbild2

Specification

  • Applications

    • Facade scaffolds
    • Temporary fastening
    • Contact surfaces
    • Shelves
    • Cable racks
    • Hand rails
    • Battens

  • Properties

    • Galvanized zinc-plated steel
    • Hexagon head with flange
    • ETA-approved concrete screw for cracked and
    • non-cracked concrete
    • Self-tapping approved screw anchor for
    • push-trough installation
    • No expansion therefore small edge and centre distances
    • possible
    • Completely removable
    • For dry indoor use

  • Technical specifications

    Approved for

    • Cracked concrete
    • Pre-stressed hollow core slab
    • Non-cracked concrete

    Also suitable for

    • Solid clay brick
    • Solid sand-lime brick

Filter

Selected filters

    Orderidentifier Article Number Embedment depth hef≥ mm Length mm Clamp thickness mm Drill hole depth mm Pilot Hole Ø mm Unit
    JC2-KB-6x35/1 SW13 9650071304 35.0 35.0 0.0 - 1.0 40.0 6.0 100

    Specifications

    Embedment depth hef≥
    35.0
    Length
    35.0
    Clamp thickness
    0.0 - 1.0
    Drill hole depth
    40.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC2-KB-6x35/1 SW13
    Unit
    100
    JC2-KB 6x45/5 9650071305 40.0 45.0 0.0 - 5.0 50.0 6.0 100

    Specifications

    Embedment depth hef≥
    40.0
    Length
    45.0
    Clamp thickness
    0.0 - 5.0
    Drill hole depth
    50.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC2-KB 6x45/5
    Unit
    100
    JC2-KB 6X45/5 SW13 9650071306 40.0 45.0 0.0 - 5.0 50.0 6.0 100

    Specifications

    Embedment depth hef≥
    40.0
    Length
    45.0
    Clamp thickness
    0.0 - 5.0
    Drill hole depth
    50.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC2-KB 6X45/5 SW13
    Unit
    100
    JC2-KB 6x50/10 9650071307 40.0 50.0 0.0 - 10.0 50.0 6.0 100

    Specifications

    Embedment depth hef≥
    40.0
    Length
    50.0
    Clamp thickness
    0.0 - 10.0
    Drill hole depth
    50.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC2-KB 6x50/10
    Unit
    100
    JC2-KB 6X50/10 SW 13 9650071308 40.0 50.0 0.0 - 10.0 50.0 6.0 100

    Specifications

    Embedment depth hef≥
    40.0
    Length
    50.0
    Clamp thickness
    0.0 - 10.0
    Drill hole depth
    50.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC2-KB 6X50/10 SW 13
    Unit
    100
    JC2-KB 6X60/5/20 SW 13 9650071310 40.0 60.0 5.0 - 20.0 50.0 6.0 100

    Specifications

    Embedment depth hef≥
    40.0
    Length
    60.0
    Clamp thickness
    5.0 - 20.0
    Drill hole depth
    50.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC2-KB 6X60/5/20 SW 13
    Unit
    100
    JC2-KB-6x70/15/30 SW13 9650071311 40.0 70.0 0.0 - 30.0 50.0 6.0 100

    Specifications

    Embedment depth hef≥
    40.0
    Length
    70.0
    Clamp thickness
    0.0 - 30.0
    Drill hole depth
    50.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC2-KB-6x70/15/30 SW13
    Unit
    100
    JC2-KB 6X80/25/40 SW 13 9650071314 40.0 80.0 25.0 - 40.0 50.0 6.0 100

    Specifications

    Embedment depth hef≥
    40.0
    Length
    80.0
    Clamp thickness
    25.0 - 40.0
    Drill hole depth
    50.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC2-KB 6X80/25/40 SW 13
    Unit
    100
    JC2-KB 6x60/5/20 9650071309 55.0 60.0 0.0 - 20.0 65.0 6.0 100

    Specifications

    Embedment depth hef≥
    55.0
    Length
    60.0
    Clamp thickness
    0.0 - 20.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC2-KB 6x60/5/20
    Unit
    100
    JC2-KB 6x80/25/40 9650071313 55.0 80.0 0.0 - 40.0 65.0 6.0 100

    Specifications

    Embedment depth hef≥
    55.0
    Length
    80.0
    Clamp thickness
    0.0 - 40.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC2-KB 6x80/25/40
    Unit
    100
