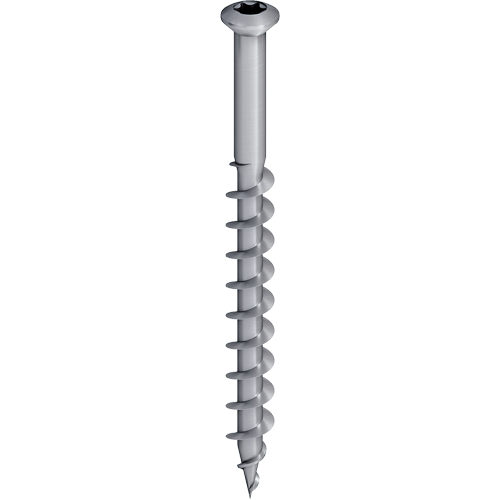

EJOT® aerated concrete screw FPS-E-8.0

FPS-E-8,0

Specification

  • Applications

    • To fix roofing membrane to aerated concrete substructures
    • For combination with EJOT® stress plates

    Notice

    Pull-out tests have to be arranged with our service team for all renovation cases.

  • Properties

    • Stainless steel
    • Approved for P3.3/0.5 aerated concrete onwards
    • No pre-drilling

  • Technical specifications

    • Diameter: 8.0 mm
    • Embedment depth: ≥ 60 mm
    • Drive: Hexalobular drive T30

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Unit
    FPS-E-8.0x100 5580100310 8.0 100.0 100

    Specifications

    ø
    8.0
    Length
    100.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E-8.0x100
    Unit
    100
    FPS-E-8.0x120 5580120310 8.0 120.0 100

    Specifications

    ø
    8.0
    Length
    120.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E-8.0x120
    Unit
    100
    FPS-E-8.0x140 5580140310 8.0 140.0 100

    Specifications

    ø
    8.0
    Length
    140.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E-8.0x140
    Unit
    100
    FPS-E-8.0x160 5580160310 8.0 160.0 100

    Specifications

    ø
    8.0
    Length
    160.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E-8.0x160
    Unit
    100
    FPS-E-8.0x180 5580180310 8.0 180.0 100

    Specifications

    ø
    8.0
    Length
    180.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E-8.0x180
    Unit
    100
    FPS-E-8.0x200 5580200310 8.0 200.0 100

    Specifications

    ø
    8.0
    Length
    200.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E-8.0x200
    Unit
    100
    FPS-E-8.0x220 5580220310 8.0 220.0 100

    Specifications

    ø
    8.0
    Length
    220.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E-8.0x220
    Unit
    100
    FPS-E-8.0x240 5580240310 8.0 240.0 100

    Specifications

    ø
    8.0
    Length
    240.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E-8.0x240
    Unit
    100
    FPS-E-8.0x260 5580260310 8.0 260.0 100

    Specifications

    ø
    8.0
    Length
    260.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E-8.0x260
    Unit
    100
    FPS-E-8.0x280 5580280310 8.0 280.0 100

    Specifications

    ø
    8.0
    Length
    280.0
    Fastener material
    Stainless Steel
    Orderidentifier
    FPS-E-8.0x280
    Unit
    100
