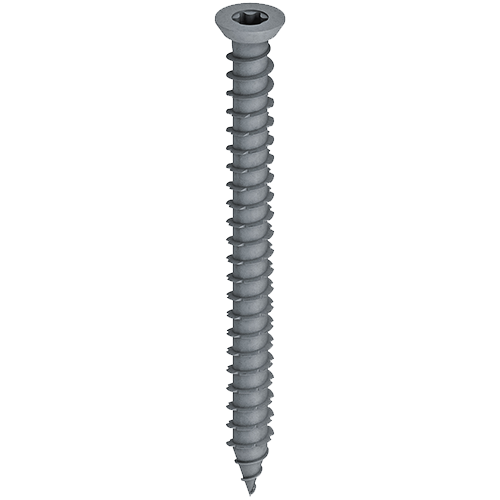

EJOT® concrete screw JBS-R-7.5

Produktbild

Specification

  • Applications

    • To fix roofing membranes to concrete substructures
    • For combination with EJOT stress plate EcoTek 50

  • Properties

    • Case-hardended steel
    • Climadur coated - high - quality coating to improve corrosion protection (15 Kesternich cycles, DIN 50018, 1997)

  • Technical specifications

    • Diameter: 7.5 mm
    • Embedment depth ≥ 30 mm
    • Nominal drill diameter: 6.0 mm
    • Hole depth: ≥ 35 mm
    • Drive: hexalobular TX30
Orderidentifier Article Number Length mm Unit
2231300609 300.0

Specifications

Length
300.0
Orderidentifier
Unit
