ECORIV® ONE battery riveting tool 16.0V / 2.0 Ah

Ecoriv-one-machine16V_500x500
Ecoriv-one-charger_500x500
Ecoriv-one-akku-16V_500x500
Ecoriv-one-lboxx_500x500

Specification

  • Applications

    • For blind rivets made of aluminium, steel, copper and stainless steel up to Ø 5.0 mm
    • For folding blind rivets up to Ø 5.2 mm

  • Benefits

    • Weight only 1.87 kg
    • Transparent mandrel container
    • Powerful Li-Ion batteries with charge indicator
    • Riveting point illuminated by LEDs
    • Delivery with retention nosepieces for rivets 2.4 mm, 3.0/3.2 mm, 4.0 mm and 4.8/5.0 mm
    • High-quality rapid charger
    • Prolonged front sleeves are optional
    • Special nosepieces are optional

  • Technical specifications

    • Working stroke: 21 mm
    • Tensile force: 10,000 N
    • Max. pin diameter: 3.4 mm
    • Battery capacity 2.0 Ah: Up to 2,000 pcs. (Rivets per battery charge depend on type and material)
    • Charging time of battery 2.0 Ah: < 1 hour
    • Weight of riveting tool: 1.54 kg
    • Weight of battery 16 V / 2.0 Ah: 0.33 kg
    • Height (without battery): approx. 24 cm
    • Length (incl mandrel container): approx. 28 cm


    Included in delivery

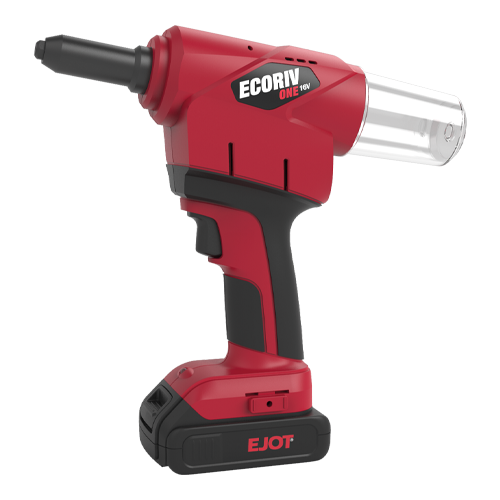

    1 battery riveter ECORIV ONE
    4 retention nosepieces

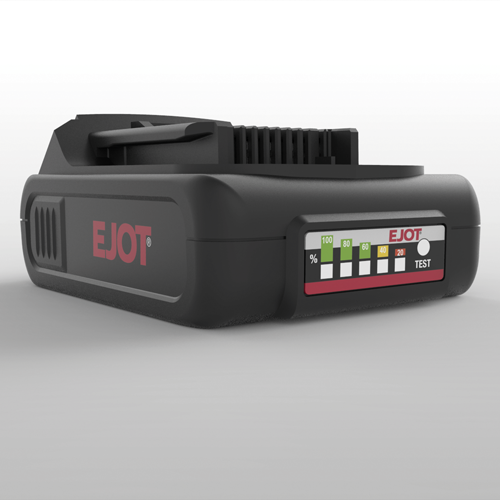

    2 batteries 2.0 Ah

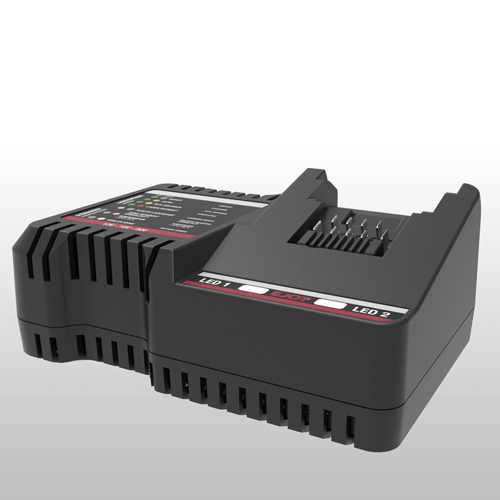

    1 rapid charger 220 V
    1 installation wrench

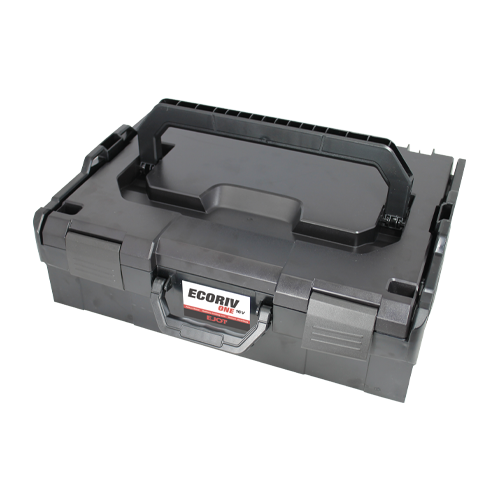

    1 plastic transport box L-Boxx

    Order information: ECORIV TWO upon request. Standard and special nosepieces upon request.

Filter

Selected filters

    Orderidentifier Article Number Unit
    EJOT® Battery Riveter ECORIV ONE 9150490102 1

    Specifications

    Weight
    1.54
    Battery capacity Ah
    1.5
    Orderidentifier
    EJOT® Battery Riveter ECORIV ONE
    Unit
    1
    EJOT® battery for ECORIV ONE 14.4V / 1.5 Ah 9150490115 1

    Specifications

    Weight
    1.54
    Battery capacity Ah
    1.5
    Orderidentifier
    EJOT® battery for ECORIV ONE 14.4V / 1.5 Ah
    Unit
    1
    EJOT® battery recharger 220 V for ECORIV ONE Typ C 9150490116 1

    Specifications

    Weight
    1.54
    Battery capacity Ah
    1.5
    Orderidentifier
    EJOT® battery recharger 220 V for ECORIV ONE Typ C
    Unit
    1
    EJOT® retention nose piece ECORIV ONE 3.0+3.2 mm 9150490117 1

    Specifications

    Weight
    1.54
    Battery capacity Ah
    1.5
    Orderidentifier
    EJOT® retention nose piece ECORIV ONE 3.0+3.2 mm
    Unit
    1
    EJOT® retention nose piece ECORIV ONE 4.8+5.0mm 9150490118 1

    Specifications

    Weight
    1.54
    Battery capacity Ah
    1.5
    Orderidentifier
    EJOT® retention nose piece ECORIV ONE 4.8+5.0mm
    Unit
    1
    EJOT® retention nose piece ECORIV ONE 4.0mm 9150490119 1

    Specifications

    Weight
    1.54
    Battery capacity Ah
    1.5
    Orderidentifier
    EJOT® retention nose piece ECORIV ONE 4.0mm
    Unit
    1
    EJOT® retention nose piece ECORIV ONE 2.4mm 9150490120 1

    Specifications

    Weight
    1.54
    Battery capacity Ah
    1.5
    Orderidentifier
    EJOT® retention nose piece ECORIV ONE 2.4mm
    Unit
    1
    EJOT® nose piece bulbtite ECORIV ONE 5.2 mm 9150490127 1

    Specifications

    Weight
    1.54
    Battery capacity Ah
    1.5
    Orderidentifier
    EJOT® nose piece bulbtite ECORIV ONE 5.2 mm
    Unit
    1
    EJOT® nose piece for facades ECORIV ONE 5.0 K11 9150490132 1

    Specifications

    Weight
    1.54
    Battery capacity Ah
    1.5
    Orderidentifier
    EJOT® nose piece for facades ECORIV ONE 5.0 K11
    Unit
    1
    EJOT® nose piece for facades ECORIV ONE 5.0 K14 9150490133 1

    Specifications

    Weight
    1.54
    Battery capacity Ah
    1.5
    Orderidentifier
    EJOT® nose piece for facades ECORIV ONE 5.0 K14
    Unit
    1
