JT3-2-6.5
Profiled steel/alu sheets, sandwich and roofing sheets to timber substructure

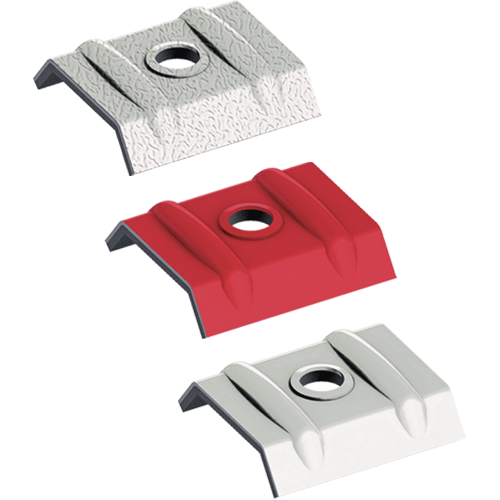

EJOT® ORKAN storm washer trapezoidal alu
Specification
-
Applications
- For crown fixing of trapezoidal profiled sheets
- For crown fixing of sandwich panels
-
Properties
- Optimised reinforcement beads
- Secure waterproofing
- Aluminium alloy mill finish, coloured (RAL)
- Storm washers are to be stored in a dry place until installation
-
Benefits
- Increased installation reliability
- High dimensional stability
- Optimum load transmission
- Sophisticated fastening system in combination with self-drilling and self-tapping screws
Note
Only use screws with 16mm and 19 mm washer diameter. For determination of the clamp thickness please take the storm washer into account with 3 mm. The guidelines and installation instructions given by the profile and panel manufacturer are to be observed. Storm washers which are not mentioned are
special storm washers. Please note surcharges.
Filter
Select system
-
Blank/Stucco
Select unit
- alu mill finish
-

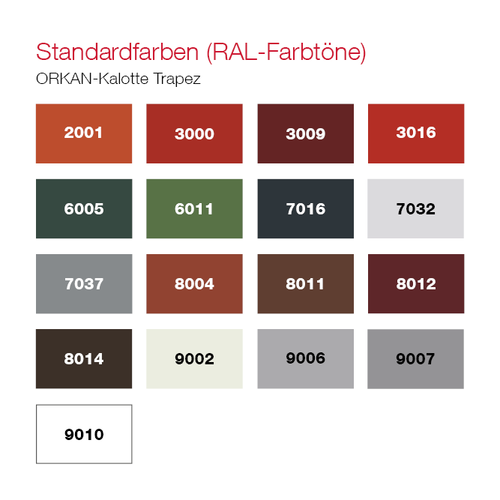

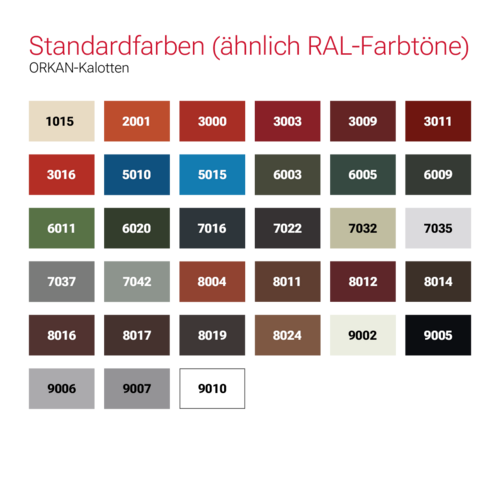

RAL
Select unit
- RAL3009
- RAL6005
- RAL7016
- RAL7035
- RAL8004
- RAL8011
- RAL8012
- RAL9002
- RAL9006
- RAL9007
Selected filters
| Orderidentifier | Article Number | Washer Width mm | Angle ° | Suitable for Crown width mm | Head Colour | Unit |
|---|---|---|---|---|---|---|
| Storm washers 21-25 mill finish | 3052125000 | 21.0 | 25.0 | 20.0 | 500 | |
Specifications
|
||||||
| ORKAN storm washer 21-16 Alu-RAL 7016 VE100 | 3072116025 | 21.0 | 16.0 | 20.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 21-25 Alu-RAL 7016 VE100 | 3072125025 | 21.0 | 25.0 | 20.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 21-25 Alu-RAL 8012 VE100 | 3072125040 | 21.0 | 25.0 | 20.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 21-16 Alu-RAL 9002 VE100 | 3076682119 | 21.0 | 16.0 | 20.0 | 100 | |
Specifications
|
||||||
| Storm washers 23-33 mill finish | 3052333000 | 23.0 | 33.0 | 22.0 | 500 | |
Specifications
|
||||||
| Storm washers 26-34 mill finish | 3052634000 | 26.0 | 34.0 | 25.0 | 500 | |
Specifications
|
||||||
| Storm washers 26-50 mill finish | 3052650000 | 26.0 | 50.0 | 25.0 | 500 | |
Specifications
|
||||||
| ORKAN storm washer 26-15 Alu-RAL 7016 VE100 | 3072615025 | 26.0 | 15.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-15 Alu-RAL 9007 VE100 | 3072615220 | 26.0 | 15.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-27 Alu-RAL 9007 VE100 | 3072627220 | 26.0 | 27.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-27 Alu-RAL 6005 VE100 | 3072627243 | 26.0 | 27.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-15 Alu-RAL 8012 VE100 | 3076940119 | 26.0 | 15.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-15 Alu-RAL 3009 VE100 | 3076957119 | 26.0 | 15.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-15 Alu-RAL 9002 VE100 | 3076982119 | 26.0 | 15.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-15 Alu-RAL 9006 VE100 | 3076984119 | 26.0 | 15.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-27 Alu-blank VE100 | 3077000110 | 26.0 | 27.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-27 Alu-RAL 7016 VE100 | 3077025119 | 26.0 | 27.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-27 Alu-RAL 8012 | 3077040119 | 26.0 | 27.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-27 Alu-RAL 8004 VE100 | 3077043119 | 26.0 | 27.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-27 Alu-RAL 3009 VE100 | 3077057119 | 26.0 | 27.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-27 Alu-RAL 8011 VE100 | 3077078119 | 26.0 | 27.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-27 Alu-RAL 9002 VE100 | 3077082119 | 26.0 | 27.0 | 25.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 26-27 Alu-RAL 9006 VE100 | 3077084119 | 26.0 | 27.0 | 25.0 | 100 | |
Specifications
|
||||||
| Storm washers 31-31 mill finish | 3053132000 | 31.0 | 31.0 | 30.0 | 500 | |
Specifications
|
||||||
| ORKAN storm washer 32-25 Alu-RAL 7016 VE100 | 3073124025 | 32.0 | 25.0 | 31.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 32-25 Alu-RAL 3009 VE100 | 3073124057 | 32.0 | 25.0 | 31.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 32-25 Alu-RAL 9002 VE100 | 3073124082 | 32.0 | 25.0 | 31.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 32-25 Alu-RAL 9006 VE100 | 3073124084 | 32.0 | 25.0 | 31.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 32-25 Alu-RAL 9007 VE100 | 3073124220 | 32.0 | 25.0 | 31.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 32-25 Alu-RAL 8004 VE100 | 3073225043 | 32.0 | 25.0 | 31.0 | 100 | |
Specifications
|
||||||
| Storm washers 34-50 mill finish | 3053450000 | 34.0 | 50.0 | 33.0 | 500 | |
Specifications
|
||||||
| Storm washers 35-47 mill finish | 3053547000 | 35.0 | 47.0 | 34.0 | 500 | |
Specifications
|
||||||
| ORKAN storm washer 35-47 Alu-RAL 7016 VE100 | 3073547025 | 35.0 | 47.0 | 34.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 35-47 Alu-RAL 9002 VE100 | 3073547040 | 35.0 | 47.0 | 34.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 35-47 Alu-RAL 8012 VE100 | 3073547082 | 35.0 | 47.0 | 34.0 | 100 | |
Specifications
|
||||||
| Storm washers 41-39 mill finish | 3054139000 | 41.0 | 39.0 | 40.0 | 500 | |
Specifications
|
||||||
| ORKAN storm washer 41-32 Alu-RAL 9007 VE100 | 3074132220 | 41.0 | 32.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-32 Alu-RAL 6005 VE100 | 3074132243 | 41.0 | 32.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-39 Alu-RAL 7016 VE100 | 3074139025 | 41.0 | 39.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-39 Alu-RAL 8012 VE100 | 3074139040 | 41.0 | 39.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-39 Alu-RAL 9002 VE100 | 3074139082 | 41.0 | 39.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-16 Alu-RAL 9002 VE100 | 3076282119 | 41.0 | 16.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-32 Alu-blank VE100 | 3079200110 | 41.0 | 32.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-32 Alu-RAL 7016 VE100 | 3079225119 | 41.0 | 32.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-32 RAL 8012 VE 100 | 3079240119 | 41.0 | 32.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-32 Alu-RAL 8004 VE100 | 3079243119 | 41.0 | 32.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-32 Alu-RAL 3009 VE100 | 3079257119 | 41.0 | 32.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-32 Alu-RAL 7035 VE100 | 3079275119 | 41.0 | 32.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-32 Alu-RAL 8011 VE100 | 3079278119 | 41.0 | 32.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-32 Alu-RAL 9002 VE100 | 3079282119 | 41.0 | 32.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 41-32 Alu-RAL 9006 VE100 | 3079284119 | 41.0 | 32.0 | 40.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 55-32 Alu-RAL 7016 VE100 | 3079525119 | 55.0 | 32.0 | 54.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 55-32 Alu-RAL 8012 VE100 | 3079540119 | 55.0 | 32.0 | 54.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 55-32 Alu-RAL 9002 | 3079582119 | 55.0 | 32.0 | 54.0 | 100 | |
Specifications
|
||||||
| ORKAN storm washer 55-32 Alu-RAL 9002 VE100 | 3079584119 | 55.0 | 32.0 | 54.0 | 100 | |
Specifications
|
