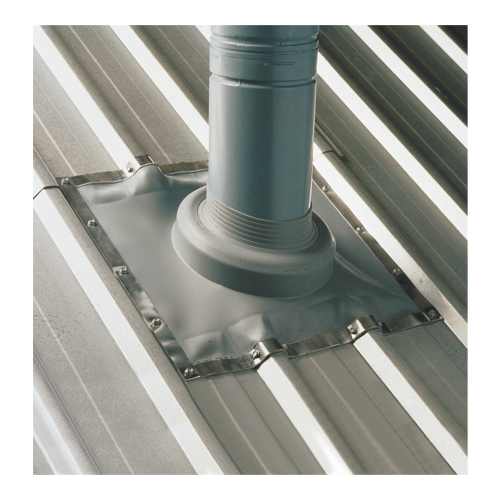

DEKTITE® Soaker Set

Rohrmanschette_Soaker

Specification

  • Applications

    • For waterproofing pipes with large openings

    Notice

    Not usable on smooth surfaces. Profile height max. 45 mm.

  • Benefits

    • Large base ensures optimum positioning
    • Reliable and easy installation
    • Seals pipe and roof in a single work step
    • Prevents rainwater back-up

  • Included in delivery

    • 1 Pipe flashing
    • 1 cartridge of EJOPLAST joint sealant
    • 1 EJOT® self-drilliing screw set

Filter

Selected filters

    Orderidentifier Article Number For pipe Ø mm Base mm Roof pitch ° Cartridge capacity ml ml Number of screws Unit
    DF 602 8206024704 75.0 - 155.0 410 x 360 60.0 - 0.0 80.0 30 1

    Specifications

    For pipe Ø mm
    75.0 - 155.0
    Base mm
    410 x 360
    Roof pitch
    60.0 - 0.0
    Cartridge capacity ml
    80.0
    Number of screws
    30
    Orderidentifier
    DF 602
    Unit
    1
    DF 603 8206034704 114.0 - 254.0 485 x 460 60.0 - 0.0 80.0 36 1

    Specifications

    For pipe Ø mm
    114.0 - 254.0
    Base mm
    485 x 460
    Roof pitch
    60.0 - 0.0
    Cartridge capacity ml
    80.0
    Number of screws
    36
    Orderidentifier
    DF 603
    Unit
    1
    DF 605 8206054704 254.0 - 406.0 708 x 635 60.0 - 0.0 310.0 52 1

    Specifications

    For pipe Ø mm
    254.0 - 406.0
    Base mm
    708 x 635
    Roof pitch
    60.0 - 0.0
    Cartridge capacity ml
    310.0
    Number of screws
    52
    Orderidentifier
    DF 605
    Unit
    1
    DF 606 8206064704 380.0 - 610.0 1006 x 610 60.0 - 0.0 310.0 96 1

    Specifications

    For pipe Ø mm
    380.0 - 610.0
    Base mm
    1006 x 610
    Roof pitch
    60.0 - 0.0
    Cartridge capacity ml
    310.0
    Number of screws
    96
    Orderidentifier
    DF 606
    Unit
    1
