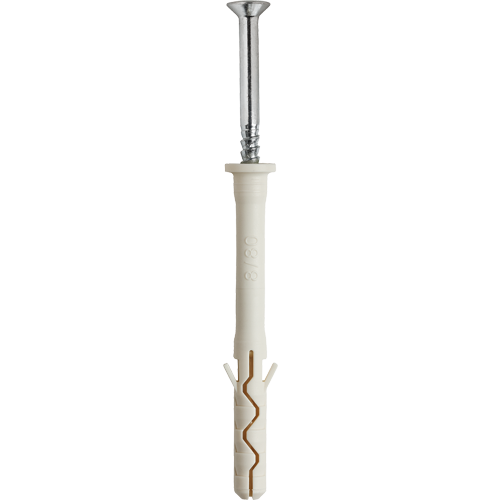

Nail anchor ND-K

ND-K

Specification

  • Applications

    Speed plug for light-duty fixings:

    • Substructures
    • Cabinets, Skirting boards. lath
    • Cable racks, cable clips
    • Pipe supports


    Base material
    Suitable for:

    • Concrete
    • Solid clay brick
    • Vertically perforated brick

  • Properties

    • Ready-to-install nylon collar flange plug with nail made of zinc-plated steel (GVZ) / Stainless steel
    • Drive-in installation
    • Nail head with Pozidriv recess for removal or adjustment of the anchor
    • The plug collars serve as plastic insulating washers and thus prevent contact corrosion
    • GVZ for dry indoor areas



  • Technical specifications

    Drive: Z2 cross recess

Filter

Selected filters

    Orderidentifier Article Number ø mm Material Anchor length mm Unit
    ND-K-5x30-V 9650075678 5.0 Carbon Steel 30.0 200

    Specifications

    ø
    5.0
    Material
    Carbon Steel
    Anchor length
    30.0
    Orderidentifier
    ND-K-5x30-V
    Unit
    200
    ND-K-5x40-V 9650075680 5.0 Carbon Steel 40.0 200

    Specifications

    ø
    5.0
    Material
    Carbon Steel
    Anchor length
    40.0
    Orderidentifier
    ND-K-5x40-V
    Unit
    200
    ND-K-5x50-V 9650075681 5.0 Carbon Steel 50.0 200

    Specifications

    ø
    5.0
    Material
    Carbon Steel
    Anchor length
    50.0
    Orderidentifier
    ND-K-5x50-V
    Unit
    200
    ND-K-5x30-E 9650075691 5.0 Stainless Steel 30.0 200

    Specifications

    ø
    5.0
    Material
    Stainless Steel
    Anchor length
    30.0
    Orderidentifier
    ND-K-5x30-E
    Unit
    200
    ND-K-6x40-V 9650075679 6.0 Carbon Steel 40.0 200

    Specifications

    ø
    6.0
    Material
    Carbon Steel
    Anchor length
    40.0
    Orderidentifier
    ND-K-6x40-V
    Unit
    200
    ND-K-6x60-V 9650075682 6.0 Carbon Steel 60.0 200

    Specifications

    ø
    6.0
    Material
    Carbon Steel
    Anchor length
    60.0
    Orderidentifier
    ND-K-6x60-V
    Unit
    200
    ND-K-6x80-V 9650075683 6.0 Carbon Steel 80.0 100

    Specifications

    ø
    6.0
    Material
    Carbon Steel
    Anchor length
    80.0
    Orderidentifier
    ND-K-6x80-V
    Unit
    100
    ND-K-6x40-E 9650075692 6.0 Stainless Steel 40.0 200

    Specifications

    ø
    6.0
    Material
    Stainless Steel
    Anchor length
    40.0
    Orderidentifier
    ND-K-6x40-E
    Unit
    200
    ND-K-6x80-E 9650075693 6.0 Stainless Steel 80.0 100

    Specifications

    ø
    6.0
    Material
    Stainless Steel
    Anchor length
    80.0
    Orderidentifier
    ND-K-6x80-E
    Unit
    100
    ND-K-8x60-V 9650075684 8.0 Carbon Steel 60.0 100

    Specifications

    ø
    8.0
    Material
    Carbon Steel
    Anchor length
    60.0
    Orderidentifier
    ND-K-8x60-V
    Unit
    100
