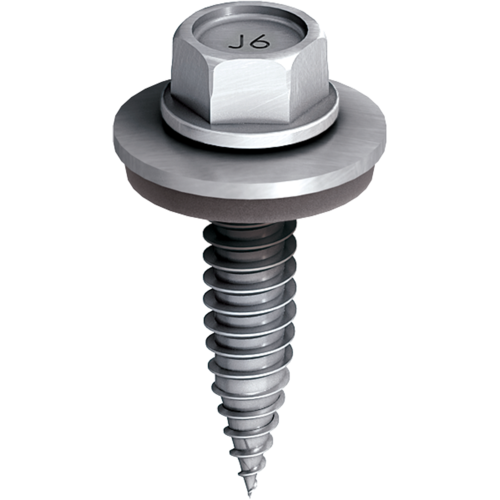

EJOFASTĀ® self drilling screw JF6-2-5.5

Specification

  • Applications

    • For fixing metal to profiled metal sheet or sandwich panels
    • For fixing plastic clips to profiled metal sheet or sandwich panels
  • Properties

    • A6 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • Non-skid application
    • Fastening with reduced swarf
  • Technical specifications

    Drive: 8 mm clip hex one piece socket
    Stitching 2 x 0.5 mm up to 2 x 1.0 mm in thickness

Filter

Selected filters

    Orderidentifier Article Number Length mm Clamp thickness mm Unit
    JF6-2-5.5x25 E16* 3597281991 25.0 5.0 - 80.0 500

    Specifications

    Length
    25.0
    Clamp thickness
    5.0 - 80.0
    Orderidentifier
    JF6-2-5.5x25 E16*
    Unit
    500
    JF6-2-5.5x25 E16 9900105066 25.0 0.5 - 8.0 100

    Specifications

    Length
    25.0
    Clamp thickness
    0.5 - 8.0
    Orderidentifier
    JF6-2-5.5x25 E16
    Unit
    100
