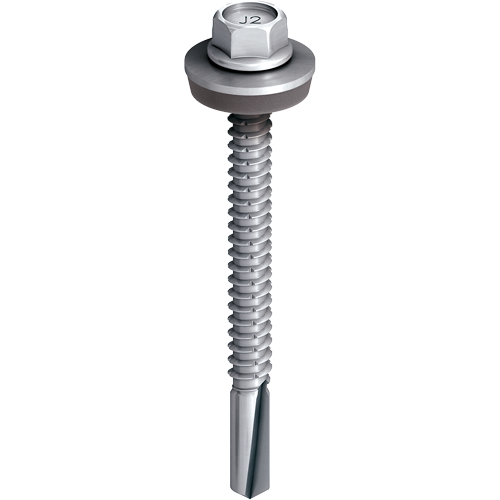

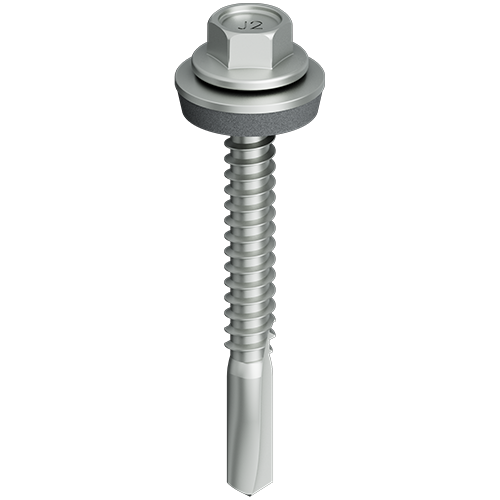

EJOT® self-drilling screw JT2-12-5.5 EJOGUARD


Specification

  • Applications

    • Fastening profiled steel sheets to 4–12 mm steel substructure

  • Properties

    • Case-hardened steel, protected against corrosion
    • High-grade coating to improve the corrosion protection
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 1.0 + 12.0 mm / 2.0 + 10.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Fastener material Unit
    JT2-12-5.5x80-V16 3807221997 5.5 16 80.0 Carbon Steel 250

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    80.0
    Fastener material
    Carbon Steel
    Clamp thickness
    21.0 - 55.0
    Orderidentifier
    JT2-12-5.5x80-V16
    Unit
    250
    JT2-12-5.5x110-V16 3807321997 5.5 16 110.0 Carbon Steel 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    110.0
    Fastener material
    Carbon Steel
    Clamp thickness
    51.0 - 85.0
    Orderidentifier
    JT2-12-5.5x110-V16
    Unit
    100
    JT2-12-5.5x130-V16 3807421997 5.5 16 130.0 Carbon Steel 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    130.0
    Fastener material
    Carbon Steel
    Clamp thickness
    71.0 - 105.0
    Orderidentifier
    JT2-12-5.5x130-V16
    Unit
    100
