  5. EJOT® self-drilling screw JT2-18-5.5 F12 EJOGUARD

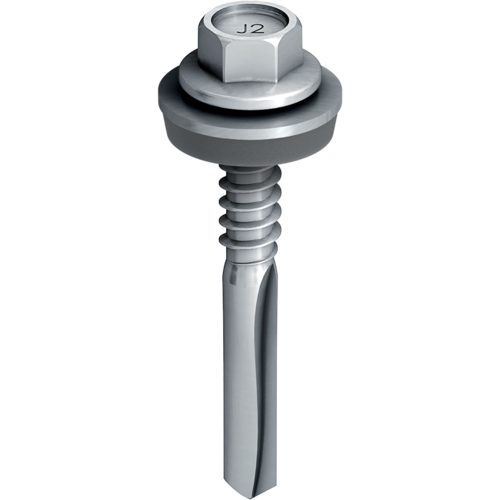

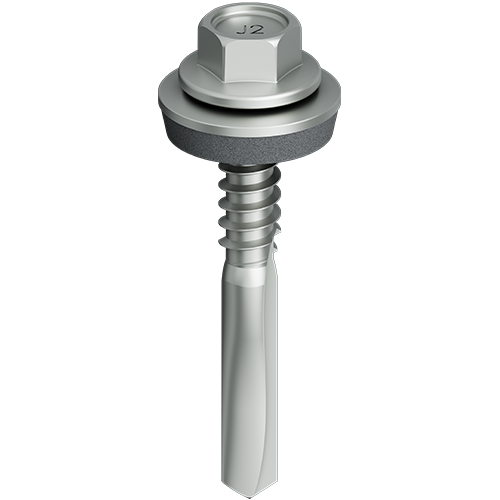

EJOT® self-drilling screw JT2-18-5.5 F12 EJOGUARD

JT2-18-5,5_Pos2

Specification

  • Applications

    • Fastening profiled steel sheets to 4 – 16 mm steel substructure

  • Properties

    • Case-hardened steel
    • EJOGUARD corrosion protection
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 2.0 + 16.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1300 rpm
Orderidentifier Article Number ø mm Length mm Unit
JT2-18-5.5x80 F12 V16 EJOGUARD 3198021997 5.5 80.0 250

Specifications

ø
5.5
Length
80.0
Clamp thickness
18.0 - 52.0
Fastener material
Carbon Steel
Orderidentifier
JT2-18-5.5x80 F12 V16 EJOGUARD
Unit
250
