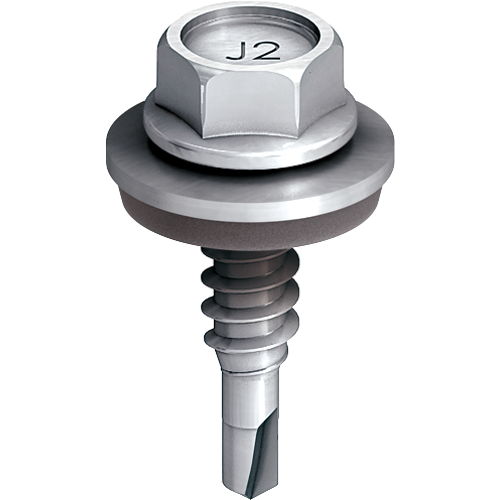

EJOT® self-drilling screw JT2-2H/3-4.8

JT2-2H-3-4_8

Specification

  • Applications

    • Side lap stitching of profiled steel sheet

    • Properties

      • Case-hardened steel, zinc-plated
      • Steel sealing washer, zinc-plated
      • Pre-assembled sealing washer
      • With free spin zone under screw head for side lap stitching

    • Technical specifications

      • Drill capacity tI + tII: 1.0 + 1.0 mm
      • Drive: Hexagon AF8
NOTE: Also available in RAL lacquering
Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
JT2-2H/3-4.8x20-V14 3592251644 4.8 14 20.0 0.0 - 6.0 500

Specifications

ø
4.8
Ø Sealing Washer mm
14
Length
20.0
Clamp thickness
0.0 - 6.0
Fastener material
Carbon Steel
Orderidentifier
JT2-2H/3-4.8x20-V14
Unit
500
