EJOT® self-drilling screw JT2-2H-Plus-5.5 EJOGUARD

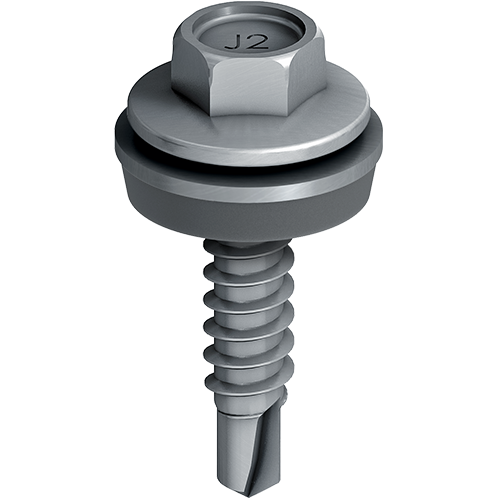

JT2-2H-Plus-5,5_Pos1

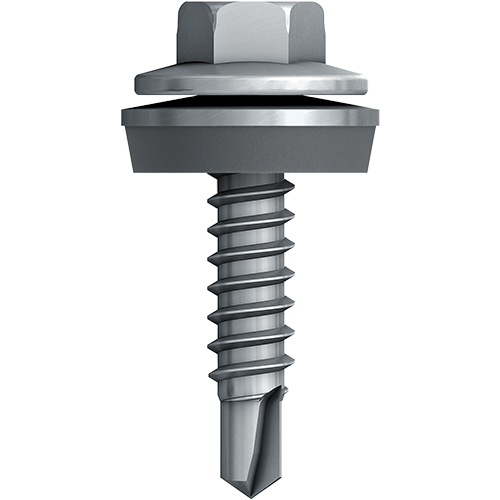

JT2-2H-Plus-5,5_Pos2

Specification

  • Applications

    • Side lap stitching of profiled steel sheets
    • Fastening profiled steel sheets to 0.4 – 2.0 mm steel substructure
    • For high-strength steel substructures according to ETA-
      10/0200

  • Properties

    • Case-hardened steel
    • EJOGUARD corrosion protection
    • Steel sealing washer, zinc-plated
    • Pre-assembled sealing washer
    • With free spin zone under screw head for effective side lap stitching

  • Technical specifications

    • Diameter: 5.5 mm
    • Drill capacity tI + tII: 1.5 + 2.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1800 rpm
Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
JT2-2H-5.5x22 3592500997 5.5 0 - none 25.0 0.0 - 9.0 500

Specifications

ø
5.5
Ø Sealing Washer mm
0 - none
Length
25.0
Clamp thickness
0.0 - 9.0
Fastener material
Carbon Steel
Orderidentifier
JT2-2H-5.5x22
Unit
500
