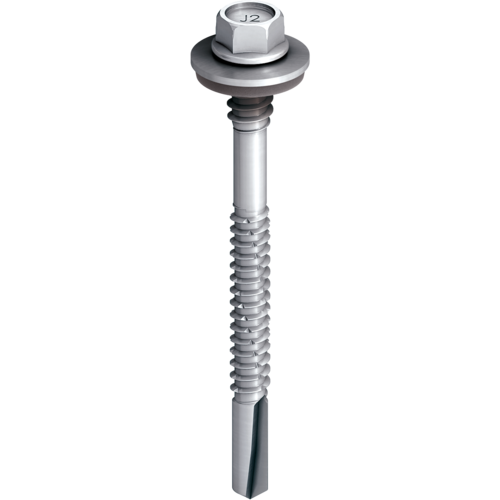

JT2-D12H-5.5/6.3
Specification
-
Applications
- Steel Profiled insulated sandwich panels to hot rolled steel sections
-
Properties
- Carbon Steel with organic corrosion resistant finish
- Unwashered
-
Technical specifications
- Drive: hexagon A/F8
- Steel sections from 4.0 to 12.0mm in thickness
| Orderidentifier | Article Number | ø mm | High thread diameter mm | Ø Sealing Washer mm | Length mm | Unit | ||
|---|---|---|---|---|---|---|---|---|
| JT2 D12H 5.5/6.3 x 275 A19 | 9900108360 | 5.5 | 6.3 | 19 | 275.0 | Carbon Steel | 203.0 - 248.0 | 100 |
