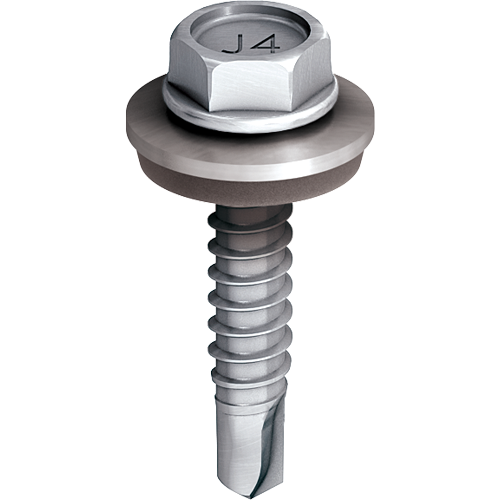

EJOT® self-drilling screw JT4-4-4.8

JT4-4-4,8

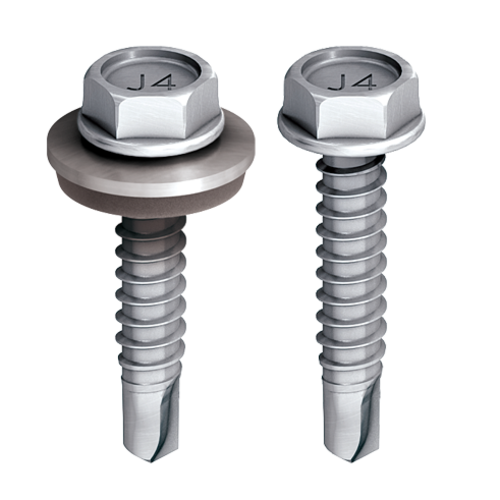

JT4-4-4_nw_2016

Specification

  • Applications

    • Fastening aluminium profiles to aluminium substructure ≤3 mm

  • Properties

    • A2 stainless steel

  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity tI + tII: 1.0 + 3.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1500 rpm
Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Fastener material Unit
JT4-4-4.8x19 PU100 6380387300 4.8 0 - none 19.0 Stainless Steel 100

Specifications

ø
4.8
Ø Sealing Washer mm
0 - none
Length
19.0
Fastener material
Stainless Steel
Clamp thickness
0.0 - 9.0
Orderidentifier
JT4-4-4.8x19 PU100
Unit
100
