Bit hexalobular TX form C 6.3
External hexagon drive

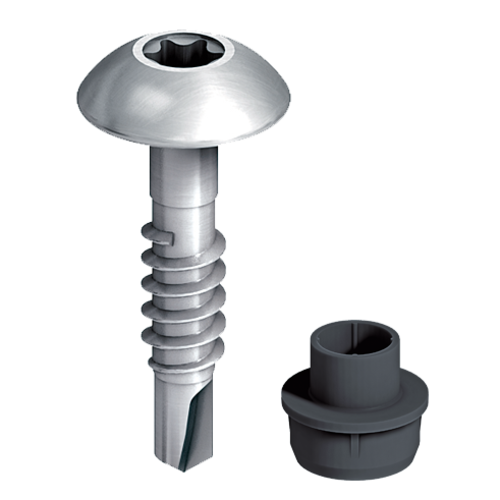

EJOT® self-drilling screw JT4-FR-2H/6-4.8
Specification
-
Applications
- Fastener for ALUCOBOND® external wall cladding according to Z-33.2-6
- For fastening without forcing tension to 2 mm aluminium substructures
Notice
We recommend the tapered special bit hexalobular drive TX25W-1/4"/Cx25 for force fit in the fastener head. To form fixed points , we recommend pre-drilling a Ø 4.0 mm hole in the panel.
-
Properties and advantages
- A2 stainless steel

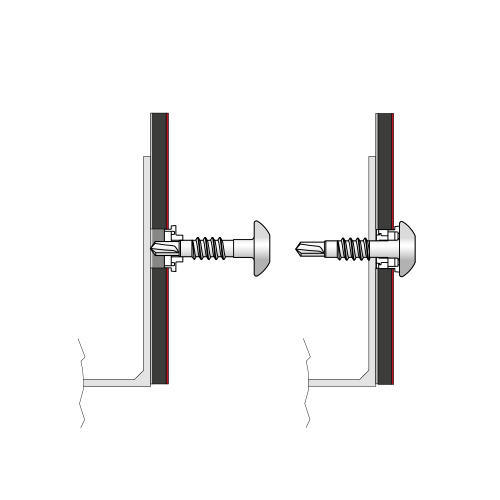

- With centring bush to form floating points
Benefits
- Centred drilling and simultaneous fastening of the boards to the substructure
- No pre-drilling of the substructre
-
Technical specifications
- Diameter: 4.8 mm
- Drilling capacity tI + tII: 1.0 + 3.0 mm
- Drive: Hexalobular TX25
- Ø drill hole centring bush: 8.0 mm
