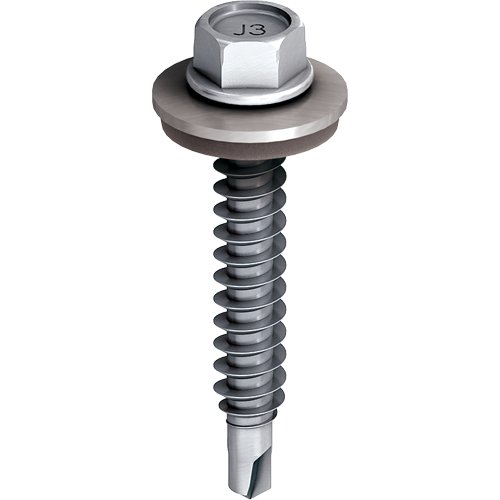

EJOT® self-drilling screw JT3-2-6.0

JT3-2-6,0

Specification

  • Applications

    • Fastening profiled aluminium sheets to thin-walled steel, aluminium or timber substructure
    • Fixing standing seam systems (clips)

  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 6.0 mm
    • Drilling capacity tI + tII: 1.0 + 1.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Fastener material Unit
    JT3-2-6.0x35-E16 3595711321 6.0 16 35.0 Stainless Steel 500

    Specifications

    ø
    6.0
    Ø Sealing Washer mm
    16
    Length
    35.0
    Fastener material
    Stainless Steel
    Clamp thickness
    0.0 - 16.0
    Orderidentifier
    JT3-2-6.0x35-E16
    Unit
    500
    JT3-2-6.0x100 E16 3595111321 6.0 16 100.0 Stainless Steel

    Specifications

    ø
    6.0
    Ø Sealing Washer mm
    16
    Length
    100.0
    Fastener material
    Stainless Steel
    Clamp thickness
    16.0 - 50.0
    Orderidentifier
    JT3-2-6.0x100 E16
    Unit
    JT3-2-6.0x120-E16 3595211321 6.0 16 120.0 Stainless Steel 100

    Specifications

    ø
    6.0
    Ø Sealing Washer mm
    16
    Length
    120.0
    Fastener material
    Stainless Steel
    Clamp thickness
    36.0 - 70.0
    Orderidentifier
    JT3-2-6.0x120-E16
    Unit
    100
    JT3-2-6.0x140-E16 3595811321 6.0 16 140.0 Stainless Steel 100

    Specifications

    ø
    6.0
    Ø Sealing Washer mm
    16
    Length
    140.0
    Fastener material
    Stainless Steel
    Clamp thickness
    56.0 - 90.0
    Orderidentifier
    JT3-2-6.0x140-E16
    Unit
    100
    JT3-2-6.0x160-E16 3595911321 6.0 16 160.0 Stainless Steel 100

    Specifications

    ø
    6.0
    Ø Sealing Washer mm
    16
    Length
    160.0
    Fastener material
    Stainless Steel
    Clamp thickness
    76.0 - 110.0
    Orderidentifier
    JT3-2-6.0x160-E16
    Unit
    100
    3595311321 6.0 16 180.0 Stainless Steel

    Specifications

    ø
    6.0
    Ø Sealing Washer mm
    16
    Length
    180.0
    Fastener material
    Stainless Steel
    Clamp thickness
    96.0 - 130.0
    Orderidentifier
    Unit
