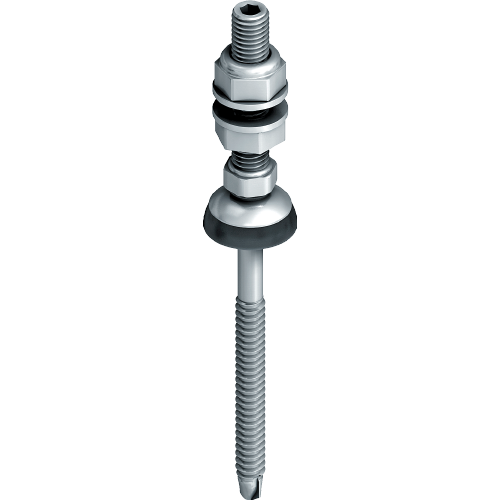

EJOT® Solar Fastener set JT3-SB-3-8.0 xL with FZD fibre cement seal
Specification
-
Applications
- For fastening elevated solar and photovoltaic installations to steel substructures 1.5 - 3 mm
- Can also be used for steel substructure ≥ 3.0 mm if predrilled
- For high-strength steel substructures up to S450GD

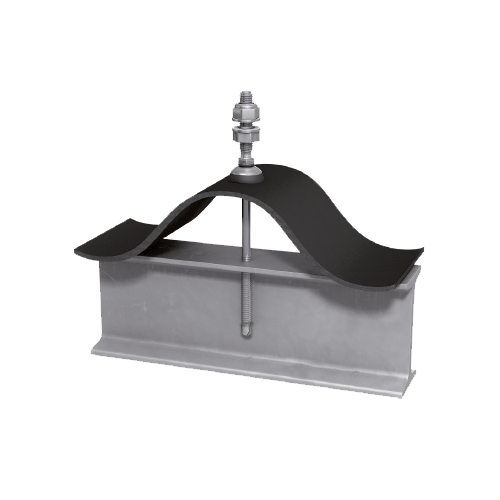

- Suitable for corrugated fibre cement profile sheets
-
Properties
- A2 stainless steel with hardened steel drill point
- In set with FZD fibre cement seal
Benefits
- Quick retrofitting on existing installations
- Fastening without pre-drilling (substructure < 3 mm)
- Extremely safe fastening with direct load transfer into the substructure
- No additional holes in the roofing membrane
- Suitable for high-strength steels
- Consistent installation depth
- Use of proven sealing systems
- Durable seal due to solid attachment point
- Minimum installation and tool requirements
- Project-related initial sizing possible
-
Technical specifications
- Screw diameter: 8.0 mm
- A/F5 hexagon drive
- Installation rotation speed: max. 1300 1/min
Notice
The solar fastener components are tailored to your project. Further versions upon request
Order information: Also available with screw nuts with locking serrations DIN EN ISO 1661. Standard scope of delivery includes: Hexagon nut DIN EN ISO 4032, self-locking hexagon nut DIN EN ISO 10511, washers DIN EN ISO 7089.
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | Clamping thickness mm | Unit |
|---|---|---|---|---|
| Set JT3-SB-3-8.0x85/50 E16 | 3340891905 | 85.0 | 18.0 - 60.0 | 25 |
Specifications
|
||||
| Set JT3-SB-3-8.0x85/50 FZD | 3340898905 | 85.0 | 17.0 - 58.0 | 25 |
Specifications
|
||||
| Set JT3-SB-3-8.0x85/70 FZD | 3340898907 | 85.0 | 17.0 - 58.0 | 25 |
Specifications
|
||||
| Set JT3-SB-3-8.0x115/50 E16 | 3341191905 | 115.0 | 48.0 - 90.0 | 25 |
Specifications
|
||||
| Set JT3-SB-3-8.0x115/50 FZD | 3341198905 | 115.0 | 47.0 - 88.0 | 25 |
Specifications
|
||||
| Set JT3-SB-3-8.0x115/70 FZD | 3341198907 | 115.0 | 47.0 - 88.0 | 25 |
Specifications
|
||||
| Set JT3-SB-3-8.0x155/50 E16 | 3341591905 | 155.0 | 88.0 - 130.0 | 25 |
Specifications
|
||||
| Set JT3-SB-3-8.0x155/50 FZD | 3341598905 | 155.0 | 87.0 - 128.0 | 25 |
Specifications
|
||||
| Set JT3-SB-3-8.0x155/70 FZD | 3341598907 | 155.0 | 87.0 - 128.0 | 25 |
Specifications
|
||||
| Set JT3-SB-3-8.0x195/50 E16 | 3341991905 | 195.0 | 128.0 - 170.0 | 25 |
Specifications
|
||||
| Set JT3-SB-3-8.0x195/50 FZD | 3341998905 | 195.0 | 127.0 - 168.0 | 25 |
Specifications
|
||||
| Set JT3-SB-3-8.0x195/70 FZD | 3341998907 | 195.0 | 127.0 - 168.0 | 25 |
Specifications
|
