T-FAST® timber construction screw JW2 wafer head

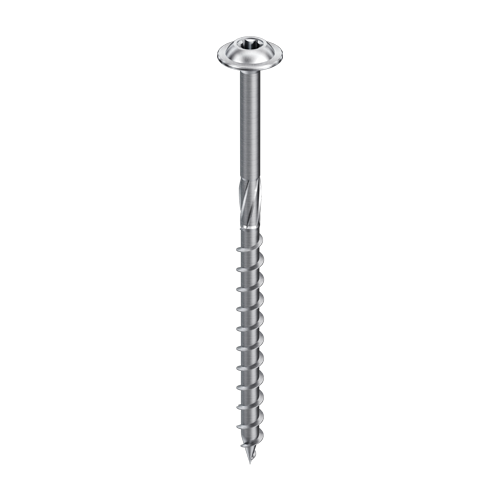

JW2-STS-6xL_500x500

Specification

  • Applications

    • Pre-drilled and non-pre-drilled fixings of timber or woodbased materials to timber substrates in weather-protected areas
    • Suitable for fastening over-rafter insulation systems
    • Ideal solution for fixing rafters onto purlins

  • Properties

    • Carbon steel with zinc-plated surface, 5 μm plating thickness
    • Wafer head (STS) increases the pull-through capacity
    • Partial thread with end mill at the transition to the non-threaded part reduces the installation torque and simplifies the installation process
    • Optimised thread geometry for extremely fast processing
    • Aggressive tip attack ensures quick gripping and enables fast processing

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm threaded length mm Head length mm Unit
    T-FAST JW2-STS-6x80/48-V TX30 3820000029 6.0 80.0 48.0 14.0 250

    Specifications

    ø
    6.0
    Length
    80.0
    threaded length
    48.0
    Head length
    14.0
    Drive
    Torx T30
    Orderidentifier
    T-FAST JW2-STS-6x80/48-V TX30
    Unit
    250
    T-FAST JW2-STS-6x100/60-V TX30 3820000030 6.0 100.0 60.0 14.0 250

    Specifications

    ø
    6.0
    Length
    100.0
    threaded length
    60.0
    Head length
    14.0
    Drive
    Torx T30
    Orderidentifier
    T-FAST JW2-STS-6x100/60-V TX30
    Unit
    250
    T-FAST JW2-STS-6x120/70-V TX30 3820000031 6.0 120.0 70.0 14.0 250

    Specifications

    ø
    6.0
    Length
    120.0
    threaded length
    70.0
    Head length
    14.0
    Drive
    Torx T30
    Orderidentifier
    T-FAST JW2-STS-6x120/70-V TX30
    Unit
    250
    T-FAST JW2-STS-6x140/70-V T30 3820000032 6.0 140.0 70.0 14.0 250

    Specifications

    ø
    6.0
    Length
    140.0
    threaded length
    70.0
    Head length
    14.0
    Drive
    Torx T30
    Orderidentifier
    T-FAST JW2-STS-6x140/70-V T30
    Unit
    250
    T-FAST JW2-STS-6x160/70-V TX30 3820000033 6.0 160.0 70.0 14.0 100

    Specifications

    ø
    6.0
    Length
    160.0
    threaded length
    70.0
    Head length
    14.0
    Drive
    Torx T30
    Orderidentifier
    T-FAST JW2-STS-6x160/70-V TX30
    Unit
    100
    T-FAST JW2-STS-6x180/70-V TX30 3820000034 6.0 180.0 70.0 14.0 100

    Specifications

    ø
    6.0
    Length
    180.0
    threaded length
    70.0
    Head length
    14.0
    Drive
    Torx T30
    Orderidentifier
    T-FAST JW2-STS-6x180/70-V TX30
    Unit
    100
    T-FAST JW2-STS-6x200/70-V TX30 3820000035 6.0 200.0 70.0 14.0 100

    Specifications

    ø
    6.0
    Length
    200.0
    threaded length
    70.0
    Head length
    14.0
    Drive
    Torx T30
    Orderidentifier
    T-FAST JW2-STS-6x200/70-V TX30
    Unit
    100
    T-FAST JW2-STS-6x220/70-V TX30 3820000036 6.0 220.0 70.0 14.0 100

    Specifications

    ø
    6.0
    Length
    220.0
    threaded length
    70.0
    Head length
    14.0
    Drive
    Torx T30
    Orderidentifier
    T-FAST JW2-STS-6x220/70-V TX30
    Unit
    100
    T-FAST JW2-STS-6x240/70-V TX30 3820000037 6.0 240.0 70.0 14.0 100

    Specifications

    ø
    6.0
    Length
    240.0
    threaded length
    70.0
    Head length
    14.0
    Drive
    Torx T30
    Orderidentifier
    T-FAST JW2-STS-6x240/70-V TX30
    Unit
    100
    T-FAST JW2-STS-6x260/70-V TX30 3820000038 6.0 260.0 70.0 14.0 100

    Specifications

    ø
    6.0
    Length
    260.0
    threaded length
    70.0
    Head length
    14.0
    Drive
    Torx T30
    Orderidentifier
    T-FAST JW2-STS-6x260/70-V TX30
    Unit
    100
