T-FAST® timber construction screw JW2 countersunk head

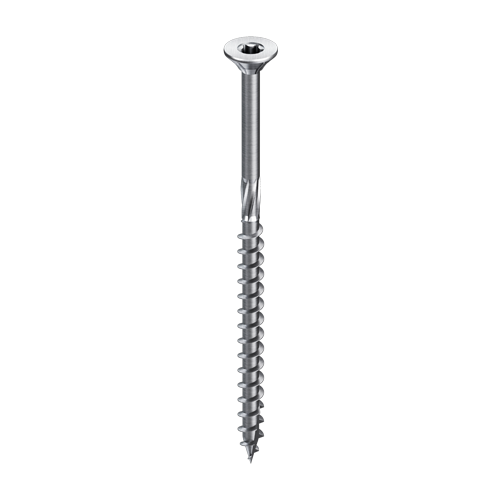

JW2-STR-4x70_42-V-T20_500x500

Specification

  • Applications

    • Pre-drilled and non-pre-drilled fixings of timber or woodbased materials to timber substrates in weather-protected areas

  • Properties

    • Carbon steel with zinc-plated surface, 5 μm plating thickness
    • Countersunk head (STR) with milling ribs on the underside makes it easier to countersink the head for surface-fixed installation
    • Partial thread with end mill at the transition to the non-threaded part reduces the installation torque and simplifies the installation process
    • Optimised thread geometry for extremely fast processing
    • Aggressive tip attack ensures quick gripping and enables fast processing

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm threaded length mm Head length mm Unit
    T-FAST JW2-STR-4x35/24-V TX20 3820000001 4.0 35.0 24.0 8.0 500

    Specifications

    ø
    4.0
    Length
    35.0
    threaded length
    24.0
    Head length
    8.0
    Drive
    TORX T20
    Orderidentifier
    T-FAST JW2-STR-4x35/24-V TX20
    Unit
    500
    T-FAST JW2-STR-4x40/24-V TX20 3820000002 4.0 40.0 24.0 8.0 500

    Specifications

    ø
    4.0
    Length
    40.0
    threaded length
    24.0
    Head length
    8.0
    Drive
    TORX T20
    Orderidentifier
    T-FAST JW2-STR-4x40/24-V TX20
    Unit
    500
    T-FAST JW2-STR-4x50/30-V TX20 3820000003 4.0 50.0 30.0 8.0 500

    Specifications

    ø
    4.0
    Length
    50.0
    threaded length
    30.0
    Head length
    8.0
    Drive
    TORX T20
    Orderidentifier
    T-FAST JW2-STR-4x50/30-V TX20
    Unit
    500
    T-FAST JW2-STR-4x60/36-V TX20 3820000004 4.0 60.0 36.0 8.0 500

    Specifications

    ø
    4.0
    Length
    60.0
    threaded length
    36.0
    Head length
    8.0
    Drive
    TORX T20
    Orderidentifier
    T-FAST JW2-STR-4x60/36-V TX20
    Unit
    500
    T-FAST JW2-STR-4x70/42-V TX20 3820000005 4.0 70.0 42.0 8.0 500

    Specifications

    ø
    4.0
    Length
    70.0
    threaded length
    42.0
    Head length
    8.0
    Drive
    TORX T20
    Orderidentifier
    T-FAST JW2-STR-4x70/42-V TX20
    Unit
    500
    T-FAST JW2-STR-4.5x50/30-V TX20 3820000006 4.5 50.0 30.0 9.0 500

    Specifications

    ø
    4.5
    Length
    50.0
    threaded length
    30.0
    Head length
    9.0
    Drive
    TORX T20
    Orderidentifier
    T-FAST JW2-STR-4.5x50/30-V TX20
    Unit
    500
    T-FAST JW2-STR-4.5x60/36-V TX20 3820000007 4.5 60.0 36.0 9.0 500

    Specifications

    ø
    4.5
    Length
    60.0
    threaded length
    36.0
    Head length
    9.0
    Drive
    TORX T20
    Orderidentifier
    T-FAST JW2-STR-4.5x60/36-V TX20
    Unit
    500
    T-FAST JW2-STR-4.5x70/42-V TX20 3820000008 4.5 70.0 42.0 9.0 500

    Specifications

    ø
    4.5
    Length
    70.0
    threaded length
    42.0
    Head length
    9.0
    Drive
    TORX T20
    Orderidentifier
    T-FAST JW2-STR-4.5x70/42-V TX20
    Unit
    500
    T-FAST JW2-STR-4.5x80/48-V TX20 3820000009 4.5 80.0 48.0 9.0 250

    Specifications

    ø
    4.5
    Length
    80.0
    threaded length
    48.0
    Head length
    9.0
    Drive
    TORX T20
    Orderidentifier
    T-FAST JW2-STR-4.5x80/48-V TX20
    Unit
    250
    T-FAST JW2-STR-5x50/30-V TX25 3820000010 5.0 50.0 30.0 10.0 250

    Specifications

    ø
    5.0
    Length
    50.0
    threaded length
    30.0
    Head length
    10.0
    Drive
    Torx T25
    Orderidentifier
    T-FAST JW2-STR-5x50/30-V TX25
    Unit
    250
