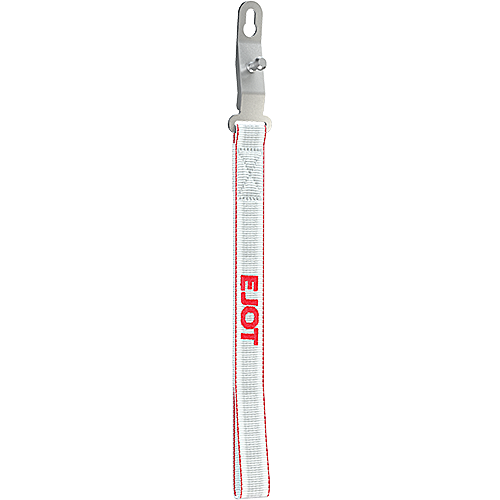

EJOT® Window carrying strap

Tragegurt_EJOT

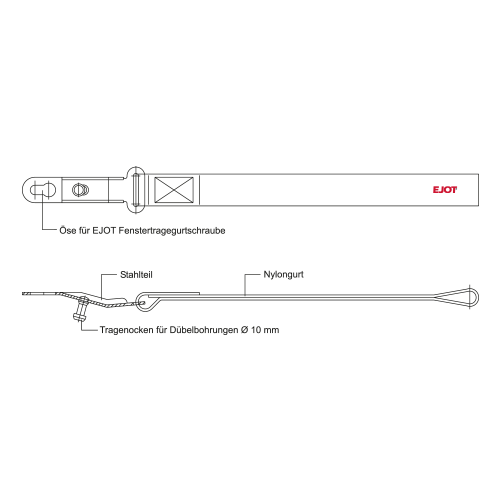

Anwendung-Tragegurt-fuer-Fenster

Specification

  • Applications

    • To support window elements
    • Can also be used in combination with EJOT window carrying strap screw
    • Fastening in the anchor hole Ø 10 mm

    Note

    • Carrying cams of the EJOT window carrying strap are inserted into the anchor hole Ø 10 mm
    • Grommet is placed on the EJOT window carrying strap screw
    • Bearing load of carrying cams with anchor hole 10 mm, max. 80 kg
    • Bearing load with carrying strap screw max. 320 kg

  • Properties

    • Bearing load of carrying cams with anchor hole 10 mm max. 80 kg
    • Bearing load with carrying strap screw max. 320 kg
    • Nylon carrying strap

Further Products

Fenstertragegurtschraube_ST-5,5x22,5

window carrying strap screw

in combination with the EJOT window carrying strap
