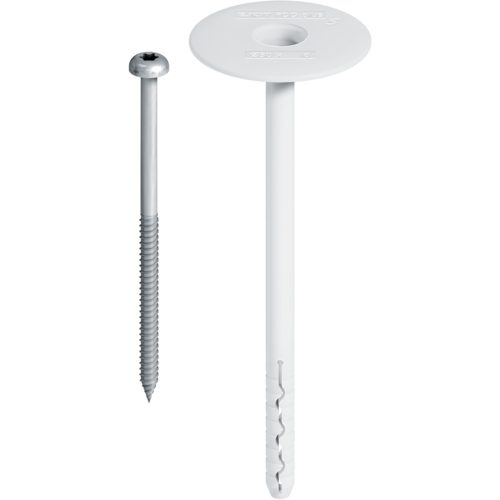

EJOT® flat roofing anchor FDD-Plus-S-R (steel)
![](/medias/sys_master/images/images/h2d/h1a/8856620236830/Rostfrei-Stainless.png)
![](/medias/sys_master/images/images/hf6/hcd/8854408200222/ETA-CE-Kombi-4C-klein.png)
![](/medias/sys_master/images/images/h7b/h95/8898941354014/Logo-EPD.png)
Specification
-
Applications
- To secure multi-layer roofing membrane
- Ideal for slope insulation
- For concrete, lightweight concrete and aerated concrete substructures
Notice
Pull-out tests have to be arranged with our service team for all renovation cases.
-
Properties
- Anchor sleeve made of high-grade plastic material
- Anchor screw made of steel, high-quality organic coating (15 Kesternich cycles, DIN 50018, 1997); Cr(VI) free
- Slim shaft along the whole length
-
Technical specifications
- Plate diameter: 50 mm
- Drill hole diameter: 8.0 mm
- Anchor screw drive: Hexalobular drive T30
- Installation depth:
- Concrete ≥ C12/15: ≥ 30 mm
- Lightweight concrete ≥ LC12/13: ≥ 30 mm
- Aerated concrete ≥ P 3.3/0.5: ≥ 65 mm - Drill hole depth:
- Concrete ≥ C12/15: ≥ 45 mm
- Lightweight concrete ≥ LC12/13: ≥ 45 mm
- Aerated concrete ≥ P 3.3/0.5: ≥ 80 mm
Filter
Selected filters
Orderidentifier | Article Number | ø mm | Length mm | Material | Unit |
---|---|---|---|---|---|
FDD-Plus-S-50x055-R | 8721055400 | 50.0 | 25.0 | Carbon Steel | 100 |
Specifications
|
|||||
FDD-Plus-S-50x075-R | 8721075400 | 50.0 | 45.0 | Carbon Steel | 100 |
Specifications
|
|||||
FDD-Plus-S-50x095-R | 8721095400 | 50.0 | 65.0 | Carbon Steel | 100 |
Specifications
|
|||||
FDD-Plus-S-50x115-R | 8721115400 | 50.0 | 85.0 | Carbon Steel | 100 |
Specifications
|
|||||
FDD-Plus-S-50x135-R | 8721135400 | 50.0 | 105.0 | Carbon Steel | 100 |
Specifications
|
|||||
FDD-Plus-S-50x155-R | 8721155400 | 50.0 | 125.0 | Carbon Steel | 100 |
Specifications
|
|||||
FDD-Plus-S-50x175-R | 8721175400 | 50.0 | 145.0 | Carbon Steel | 100 |
Specifications
|
|||||
FDD-Plus-S-50x195-R | 8721195400 | 50.0 | 165.0 | Carbon Steel | 100 |
Specifications
|
