EJOT® stress plate HTK 2G 50

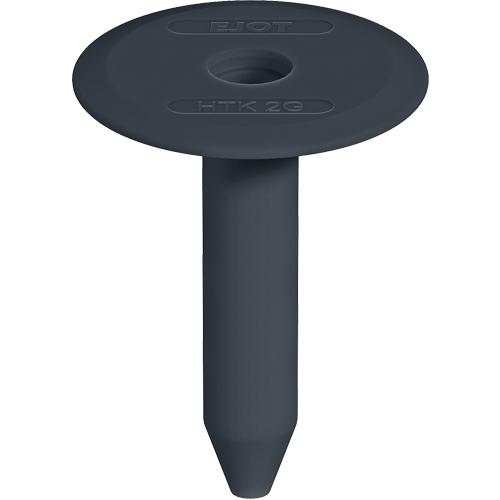

HTK-2G_foto1

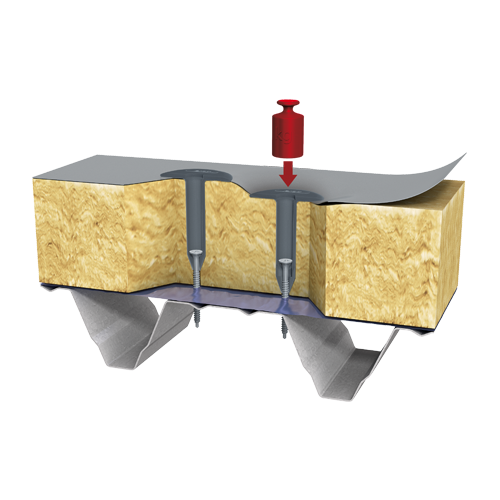

HTK-2G_foto3

Specification

  • Applications

    • To secure roofing membrane to substructures made of trapezoidal steel profiles, wood and wood-based materials
    • New buildings and renovations
    • For special requirements of resistance to imposed loads
    • To reduce thermal bridges
    • For installation with EJOT® ECOSET HTK tools (length 35-145 mm)

    Notice

    For combination with EJOT Dabo® screws

  • Properties

    • High-grade plastic material
    • Telescope design for resistance to imposed loads
    • For insulating material thicknesses up to 605 mm
    • Available loosely pre-assembled or collated

  • Note

    For combination with EJOT Dabo® screws

Filter

Selected filters

    Orderidentifier Article Number ø mm Recess Depth mm Unit
    HTK-2G-50x35 8587035070 50.0 35.0 1800

    Specifications

    ø
    50.0
    Recess Depth
    35.0
    Orderidentifier
    HTK-2G-50x35
    Unit
    1800
    HTK-2G-50x225 8587225070 50.0 225.0 300

    Specifications

    ø
    50.0
    Recess Depth
    225.0
    Orderidentifier
    HTK-2G-50x225
    Unit
    300
    HTK-2G-50x275 8587275070 50.0 275.0 300

    Specifications

    ø
    50.0
    Recess Depth
    275.0
    Orderidentifier
    HTK-2G-50x275
    Unit
    300
