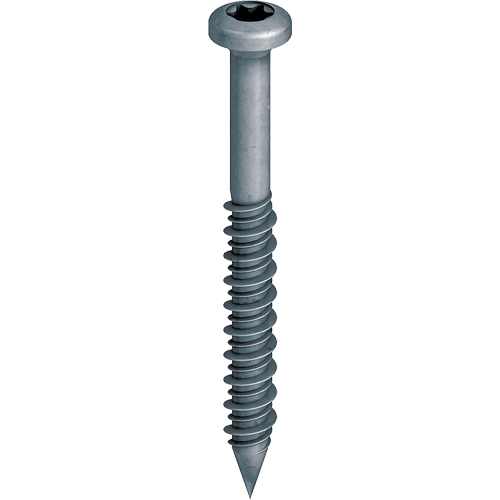

EJOT® concrete screw FBS-R-6.3

Betonschraube FBSR-6_3

Specification

  • Applications

    • To fix roofing membranes to concrete substructures
    • For combination with EJOT® stress plates

  • Properties

    • Case-hardened steel
    • Climadur coated – high-quality coating to improve corrosion protection (15 Kesternich cycles, DIN 50018, 1997)

  • Technical specifications

    • Diameter: 6.3 mm
    • Embedment depth: ≥ 30 ≤ 45 mm
    • Nominal drill diameter: 5.0 mm
    • Drill hole depth: ≥ 45 mm
    • Drive: Hexalobular drive T30
