Fastening with reduced swarf on the facade
EJOFAST® self-drilling screws
The EJOFAST® family for various applications on the facade
The self-drilling screws of the EJOFAST® family allow secure application to the surface. Dancing or slipping is almost impossible – an important feature when it comes to fastenings on the facade.Get to know our specific fastening solutions from the EJOFAST® family and learn more about the respective features and advantages.
EJOFAST® self-drilling screw JF3-Plus-6.8
The EJOFAST® JF3-Plus-6.8 is a self-drilling screw for screwing profiled sheets, sandwich panels, edge parts and cladding onto timber substructures. The low splitting effect in the wood due to the slim, concave tip geometry and the suitability for high loads should be emphasized.
Suitable accessories: Storm washers

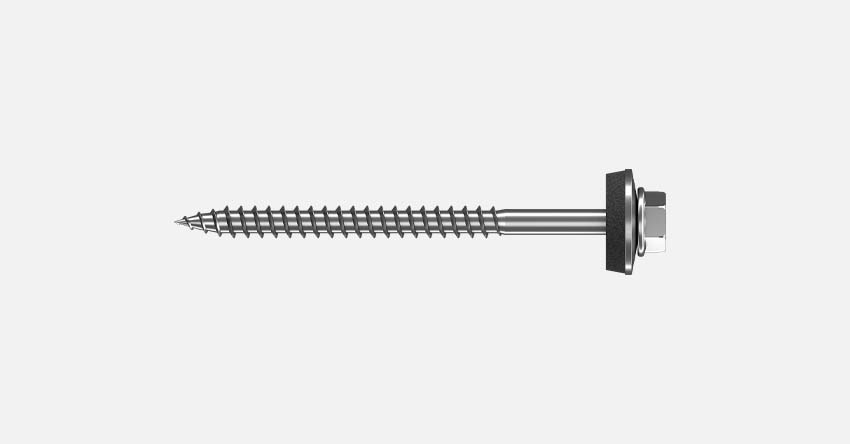

EJOFAST® self-drilling screw JF3-Plus-4.9
The EJOFAST® JF3-Plus-4.9 is a self-drilling screw for screwing profiled sheets, sheet metal, edge parts and cladding onto timber substructures. The low splitting effect in the wood due to the slim, concave tip geometry and the suitability for fastenings with low edge distances should be emphasized.
Suitable accessories: Storm washers

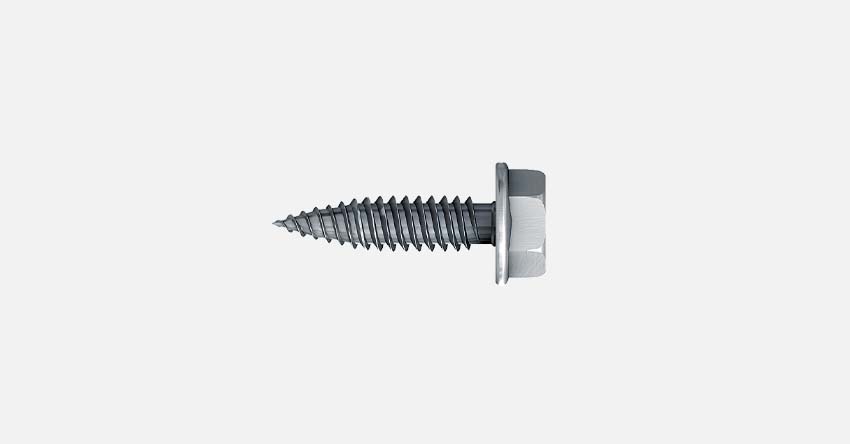

EJOFAST® self-drilling screw JF2-2H-4.8
The EJOFAST® JF2-2H-4.8 is a side lap screw for the connection of cassette wall systems. The undercut principle of the screw is used to securely connect thin metal sheets.
Suitable accessories: Sealing tape

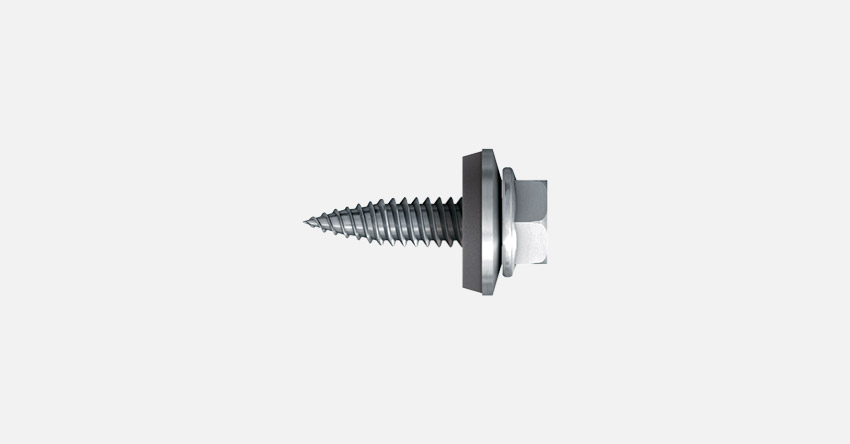

EJOFAST® self-drilling screw JF3-2H-4.8
The EJOFAST® JF3-2H-4.8 is a side lap screw for profiled metal sheets in areas that are not exposed to the weather. The undercut principle of the screw is used to securely connect thin metal sheets.
Suitable accessories: Sealing tape
EJOFAST® self-drilling screw JF3-FR-2-5.5
The EJOFAST® self-drilling screw JF3-FR-2-5.5 is suitable for screwing edge parts and cladding and is characterized in particular by a particularly high load-carrying capacity due to material displacement. With the truss head, it has more visual appeal, especially with corrugated profile sheets. In addition, thanks to its approvals, it can also be used on the international market.
Suitable accessories: FR-Tool
EJOFAST® self-drilling screw JF3-2-5.5
The EJOFAST® self-drilling screw JF3-2-5.5 enables retaining strips and rails as well as trapezoidal sheet metal clamps/bridges and smoke deflectors to be attached to both solar roofs and outdoor installations. Due to the material displacement, it has a particularly high load-carrying capacity. In addition, thanks to its approvals, it can also be used on the international market.

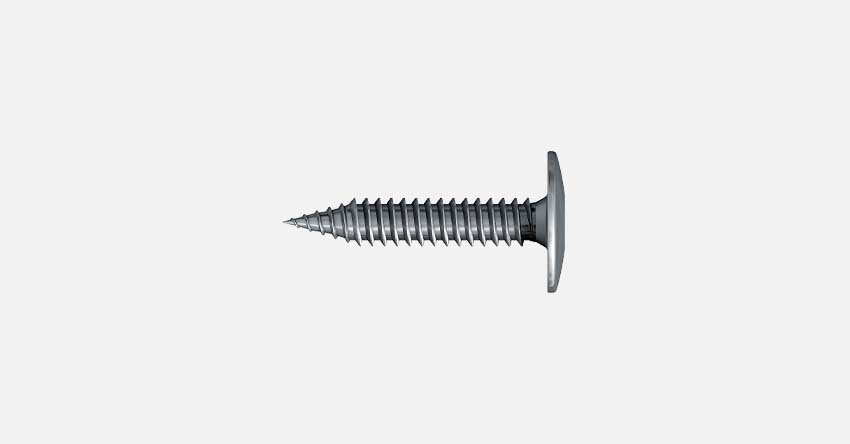

EJOFAST® self-drilling screw JF3-LT-2-5.5 KD16
The EJOFAST® self-drilling screw JF3-LT-2-5.5 KD16 is suitable for screwing all common cladding panels and covers slotted holes. Due to the very flat head, it looks particularly good in the facade design. The screw is also available in a colour version. Please note the approval and assembly instructions of the panel manufacturer when using.
Suitable accessories: Centring grommets (Fixed point/Sliding point), LT-Tool, CROSSFIX®

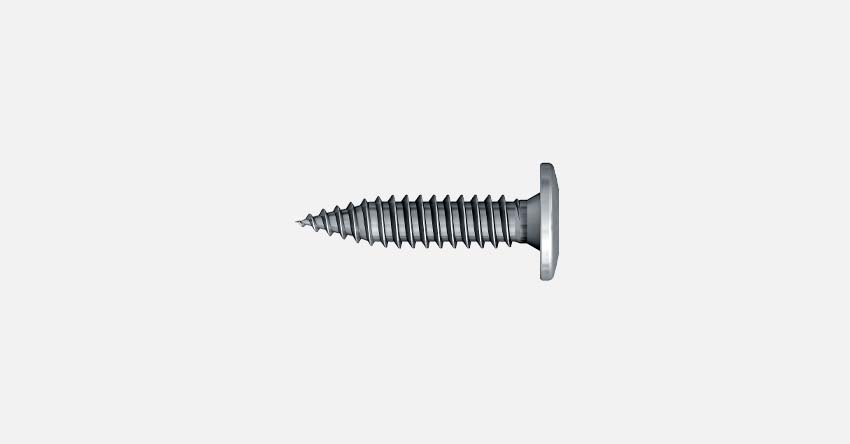

EJOFAST® self-drilling screw JF3-LT-2-5.5 KD12
The EJOFAST® self-drilling screw JF3-LT-2-5.5 KD12 is suitable for the fastening of small-format metal shingles or corresponding clip fastenings with reduced swarf. It is characterized by a flat pan head that can be covered. Small and board format elements such as metal shingles do not need a proof of usability in the facade and can be attached according to the recognized rules of technology.
Suitable accessories: LT-Tool, CROSSFIX®
