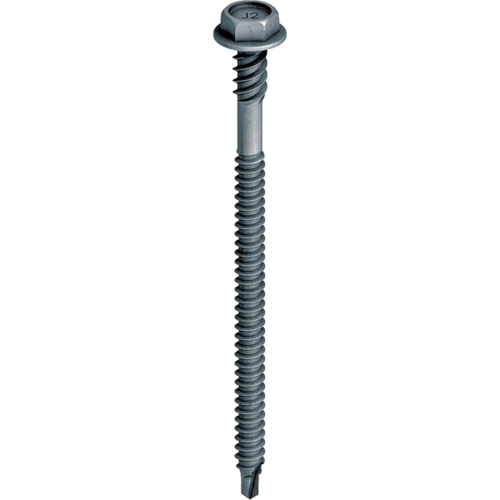

EJOT Dabo® screw AF 8 RT-4.8 belted

Specification

Applications
- To fix roofing membrane to substructures made of sheet steel ≥ 0.75 mm ≤ 1 mm, timber or wood-based material
- For combination with EJOT^® stress plates
Properties
- Case-hardened steel
- Climadur coated - high-quality coating to improve corrosion protection (15 Kesternich cycles, DIN 50018, 1997)
- With high thread to prevent screw head protrusion due to foot traffic
Technical specifications
- Diameter: 4.8 mm
- Drill capacity: 1.5 mm
- Drive: Hexagon A/F8
Length determination (min. lengths):
- Sheet steel: Insulation thickness + 20 mm
- Timber: Insulation thickness + 30 mm

Orderidentifier	Article Number	Unit
AF8RT-4.8x80-belted	3477101629	750
Specifications Orderidentifier AF8RT-4.8x80-belted Unit 750
AF8RT-4.8x100-belt-fed	3477301629	750
Specifications Orderidentifier AF8RT-4.8x100-belt-fed Unit 750
AF8RT-4.8x120-belt-fed	3477501629	750
Specifications Orderidentifier AF8RT-4.8x120-belt-fed Unit 750
AF8RT-4.8x140-belt-fed	3477701629	750
Specifications Orderidentifier AF8RT-4.8x140-belt-fed Unit 750
AF8RT-4.8x160-belt-fed	3477901629	750
Specifications Orderidentifier AF8RT-4.8x160-belt-fed Unit 750
AF8RT-4.8x180-belt-fed	3478101629	750
Specifications Orderidentifier AF8RT-4.8x180-belt-fed Unit 750
AF8RT-4.8x200-belt-fed	3478301629	750
Specifications Orderidentifier AF8RT-4.8x200-belt-fed Unit 750
AF8RT-4.8x220-belt-fed	3478401629	750
Specifications Orderidentifier AF8RT-4.8x220-belt-fed Unit 750
AF8RT-4.8x240-belt-fed	3478601629	750
Specifications Orderidentifier AF8RT-4.8x240-belt-fed Unit 750
AF8RT-4.8x260-belt-fed	3478801629	750
Specifications Orderidentifier AF8RT-4.8x260-belt-fed Unit 750
