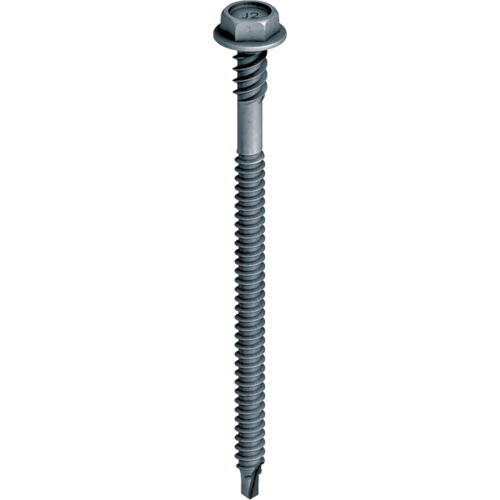

DABO® screw SW8-RT-4.8

Dachbohrschraube_Dabo_SW8RT_4.8
J2-Gurt_SW8-RT-4-8x100

Specification

  • Applications

    • To fix roofing membrane to substructures made of sheet steel ≥ 0.75 mm ≤ 1 mm timber or wood-based material
    • For combination with EJOT® stress plates

  • Properties

    • Case-hardened steel
    • Climadur coated - high-quality coating to improve corrosion protection (15 Kesternich cycles, DIN 50018, 1997)
    • With high thread to prevent screw head protrusion due to foot traffic

  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity: 1.5 mm
    • Drive: Hexagon A/F8

    Length determination (min. lengths):

    • Sheet steel: Insulation thickness + 20 mm
    • Timber: Insulation thickness + 30 mm
