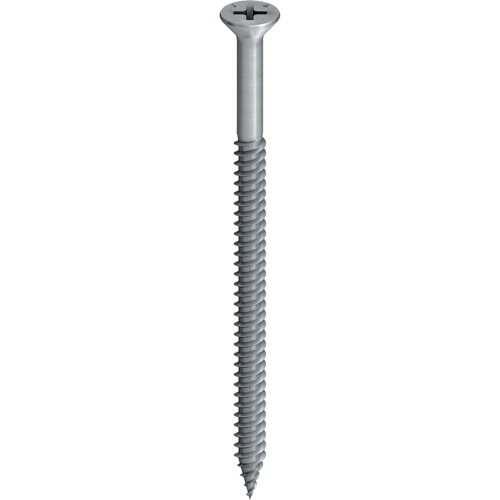

EJOT Dabo® screw VHT-E-4.8
Specification
-
Applications
- To fix roofing membrane to substructures made of sheet steel ≥ 0.5 mm ≤ 0.75 mm, timber and wood-based material
- New buildings and renovations
- For combination with EJOT® stress plates
Notice
For thicker and/or two-ply sheet steel we recommend use of the EJOT Dabo® screw TKE-4.8.
-
Properties
- A4 stainless steel with hardened steel drill point
- Thread length 100 mm
- Can be delivered belted for EJOT® ECOSET installation tool or pre-assembled with EJOT® stress plates HTK for EJOT® ECOSET HTK installation tool.
- With bugle head
-
Technical specifications
- Diameter: 4.8 mm
- Drilling capacity: 0.75 mm
- Drive: Cross recess PH 2
Length determination (min. lengths)
- Sheet steel: Insulation thickness + 20 mm
- Timber: Insulation thickness + 30 mm
