  5. EJOT® facade anchor SDP-KB-10G/M8

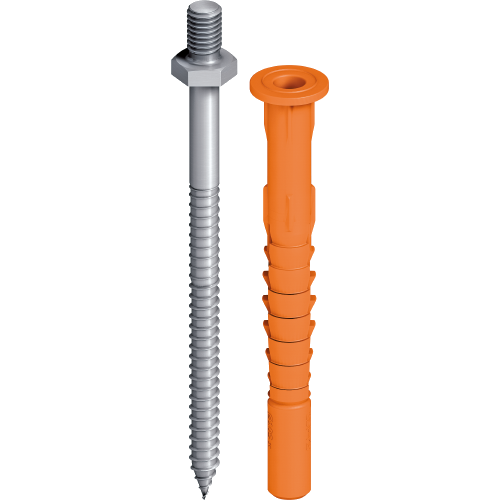

EJOT® facade anchor SDP-KB-10G/M8

SDF-KB_10G-M8_500x500

Specification

  • Applications

    • Suitable for installation of support profiles with steel rods in rainscreen
    • Embedment of suspended ceilings
    • Fastening of ring bolts

    Notice

    For planning and processing, please observe approval ETA-12/0502.

  • Properties

    • With M8 threaded connection
    • Facade anchor with two-stage screw
    • Reliable form-fit in the substrate thanks to combined expansion zones
    • High load capacity
    • Product identification through different sleeve colours

  • Technical specifications

    Characteristic values

    • Diameter: 10 mm
    • Drive: SW13
    • Length M8 threaded connection: 13 mm
    • Drill hole depth ≥ t: +90 mm
    • Embedment depth ≥ hv: 70 mm

    Characteristic loads

    • Compressive strength aerated concrete [N/mm2]
      • Aerated concrete 2: 0.75 kN
      • Aerated concrete 3: 1.31 kN
      • Aerated concrete 4: 1.87 kN
      • Aerated concrete 6: 3.00 kN
    • Partial safety factor γMAAC: 2.00
    • Characteristic Bending moment
      • Stainless steel screw: 20.6 Nm / γMS 1.87
