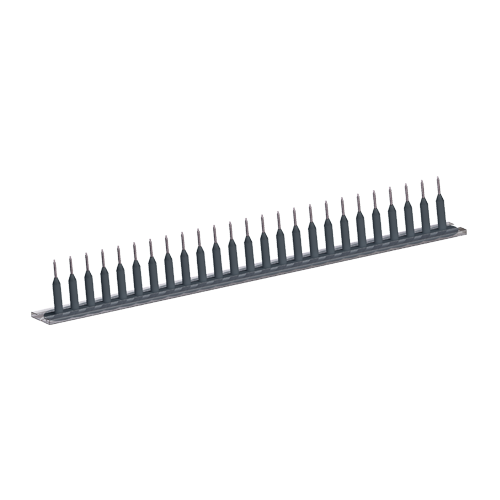

EJOT® stress plate HTK-2G-M collated

Specification

Applications
- To fix roofing membrane
- New buildings and renovations
- For installation with EJOT^® ECOset HTK installation tool
- For special requirements of resistance to imposed loads
- To reduce thermal bridges
Notice
For combination with EJOT Dabo^® screws. Drilling capacity = 4 mm on request!
Properties
- Stress plate: high-grade plastic material
- Dabo^® screw TKR/VHT-R = case-hardened steel, Climadur* coated
- Dabo^® screw TKE/VHT-E = A4 stainless steel

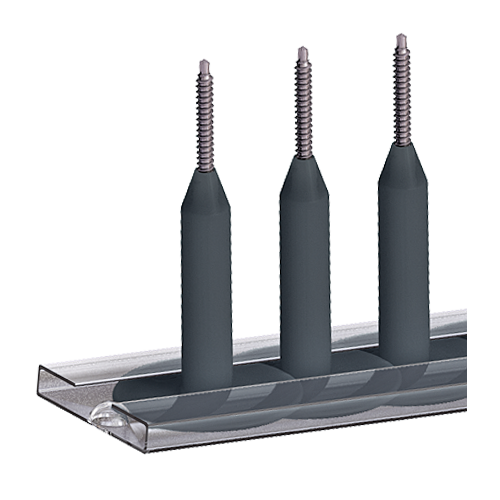

- collated
- Telescope design for resistance to imposed loads
- Combinations for insulation thicknesses up to 605 mm on request
*Climadur
High-grade coating to improve the corrosion protection
(15 Kesternich cycles, DIN 50018, 1997)
Technical specifications
- Drilling capacity: 1.50 mm
- Collator capacity: 25 pc.

Downloads

ETA-07/0013.pdf 3 MB
EPD Flat roof fastening systems.pdf 1 MB
Product data sheet.pdf 253 KB

Filter

Selected filters

Orderidentifier	Article Number	Recess Depth mm	for Dabo ® Screw	Insulation thickness mm	Screw length mm	Unit
HTK-2G-M/TKR-60-35/50	3703505021	35.0	TKR	60.0	50.0	1000
Specifications Recess Depth 35.0 for Dabo ® Screw TKR Insulation thickness 60.0 Screw length 50.0 Orderidentifier HTK-2G-M/TKR-60-35/50 Unit 1000
HTK-2G-M/TKR-80-55/50	3705505021	55.0	TKR	80.0	50.0	1000
Specifications Recess Depth 55.0 for Dabo ® Screw TKR Insulation thickness 80.0 Screw length 50.0 Orderidentifier HTK-2G-M/TKR-80-55/50 Unit 1000
HTK-2G-M/TKR-100-55/70	3705507021	55.0	TKR	100.0	70.0	1000
Specifications Recess Depth 55.0 for Dabo ® Screw TKR Insulation thickness 100.0 Screw length 70.0 Orderidentifier HTK-2G-M/TKR-100-55/70 Unit 1000
HTK-2G-M/TKR-120-95/50	3709505021	95.0	TKR	120.0	50.0	1000
Specifications Recess Depth 95.0 for Dabo ® Screw TKR Insulation thickness 120.0 Screw length 50.0 Orderidentifier HTK-2G-M/TKR-120-95/50 Unit 1000
HTK-2G-M/TKR-140-95/70	3709507021	95.0	TKR	140.0	70.0	1000
Specifications Recess Depth 95.0 for Dabo ® Screw TKR Insulation thickness 140.0 Screw length 70.0 Orderidentifier HTK-2G-M/TKR-140-95/70 Unit 1000
HTK-2G-M/TKR-160-115/70	3711507021	115.0	TKR	160.0	70.0	700
Specifications Recess Depth 115.0 for Dabo ® Screw TKR Insulation thickness 160.0 Screw length 70.0 Orderidentifier HTK-2G-M/TKR-160-115/70 Unit 700
HTK-2G-M/TKR-180-145/60	3714506021	145.0	TKR	180.0	60.0	700
Specifications Recess Depth 145.0 for Dabo ® Screw TKR Insulation thickness 180.0 Screw length 60.0 Orderidentifier HTK-2G-M/TKR-180-145/60 Unit 700
HTK-2G-M/TKR-200-145/80	3714508021	145.0	TKR	200.0	80.0	700
Specifications Recess Depth 145.0 for Dabo ® Screw TKR Insulation thickness 200.0 Screw length 80.0 Orderidentifier HTK-2G-M/TKR-200-145/80 Unit 700
HTK-2G-M/TKR-220-145/100	3714510021	145.0	TKR	220.0	100.0	700
Specifications Recess Depth 145.0 for Dabo ® Screw TKR Insulation thickness 220.0 Screw length 100.0 Orderidentifier HTK-2G-M/TKR-220-145/100 Unit 700
HTK-2G-M/TKR-240-145/120	3714512021	145.0	TKR	240.0	120.0	700
Specifications Recess Depth 145.0 for Dabo ® Screw TKR Insulation thickness 240.0 Screw length 120.0 Orderidentifier HTK-2G-M/TKR-240-145/120 Unit 700
HTK-2G-M/TKR-260-145/140	3714514021	145.0	TKR	260.0	140.0	700
Specifications Recess Depth 145.0 for Dabo ® Screw TKR Insulation thickness 260.0 Screw length 140.0 Orderidentifier HTK-2G-M/TKR-260-145/140 Unit 700
HTK 2G-M/TKR-280-145/160	3714516021	145.0	TKR	280.0	160.0	700
Specifications Recess Depth 145.0 for Dabo ® Screw TKR Insulation thickness 280.0 Screw length 160.0 Orderidentifier HTK 2G-M/TKR-280-145/160 Unit 700
