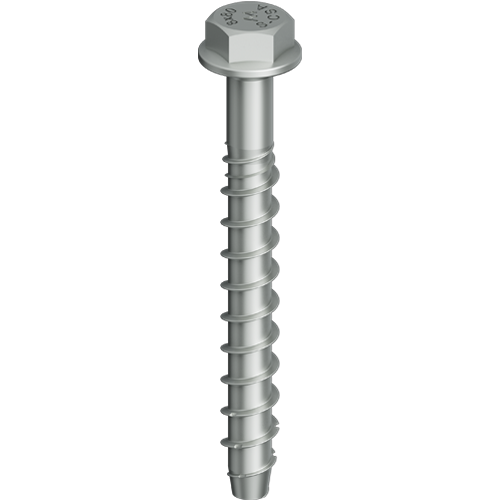

EJOT® Concrete screw JC6-KB stainless steel A4

jc6-kb-a4-pos2_500x500

Specification

  • Applications

    • For embedment in cracked and non-cracked concrete C20/25 – C50/60
    • Permanently wet indoor use
    • Outdoor use, including industrial and maritime environments
    • Fastening of e.g.:
      • Canopies
      • Gates
      • Shelving systems
      • Cable trays
      • Handrails and railings
      • Stadium seating
      • Impact protection / ram protection
      • Timber construction accessories (e.g. brackets, ...)
      • ..

  • Properties

    • Stainless steel A4 with hardened steel tip
    • Hexagone head with flange
    • ETA approved for cracked and non-cracked concrete C20/25 – C50/60
    • Concrete screws are intended for through installations
    • No predefined tightening torque

    Benefits

    • Requires only a small drill hole
    • Allows small spacing and edge distances
    • The screw is fully removable

    Base materials

    Approved for

    • Cracked concrete
    • Non-cracked concrete

  • Technical specifications

    • Drive: 13 mm + 15 mm clip hex one piece socket
    • Fireressistenz: R120
    • Stainless steel

Filter

Selected filters

    Orderidentifier Article Number Embedment depth hef≥ mm Length mm Drill hole depth mm Pilot Hole Ø mm Unit
    JC6-KB 6x50/5 SW13 A4 9650071970 45.0 50.0 55.0 6.0

    Specifications

    Embedment depth hef≥
    45.0
    Length
    50.0
    Drill hole depth
    55.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-KB 6x50/5 SW13 A4
    Unit
    JC6-KB 6x60/15/5 SW13 A4 9650071971 45.0 60.0 55.0 6.0

    Specifications

    Embedment depth hef≥
    45.0
    Length
    60.0
    Drill hole depth
    55.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-KB 6x60/15/5 SW13 A4
    Unit
    JC6-KB 6x70/25/15 SW13 A4 9650071972 45.0 70.0 55.0 6.0

    Specifications

    Embedment depth hef≥
    45.0
    Length
    70.0
    Drill hole depth
    55.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-KB 6x70/25/15 SW13 A4
    Unit
    JC6-KB 6x80/35/25 SW13 A4 9650071973 45.0 80.0 55.0 6.0

    Specifications

    Embedment depth hef≥
    45.0
    Length
    80.0
    Drill hole depth
    55.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-KB 6x80/35/25 SW13 A4
    Unit
    JC6-KB 8x70/20/5 SW13 9650071974 50.0 70.0 60.0 8.0

    Specifications

    Embedment depth hef≥
    50.0
    Length
    70.0
    Drill hole depth
    60.0
    Pilot Hole Ø
    8.0
    Orderidentifier
    JC6-KB 8x70/20/5 SW13
    Unit
    JC6-KB 8x80/30/15 SW13 9650071975 50.0 80.0 60.0 8.0

    Specifications

    Embedment depth hef≥
    50.0
    Length
    80.0
    Drill hole depth
    60.0
    Pilot Hole Ø
    8.0
    Orderidentifier
    JC6-KB 8x80/30/15 SW13
    Unit
    JC6-KB 8x100/50/35 SW13 9650071976 50.0 100.0 60.0 8.0

    Specifications

    Embedment depth hef≥
    50.0
    Length
    100.0
    Drill hole depth
    60.0
    Pilot Hole Ø
    8.0
    Orderidentifier
    JC6-KB 8x100/50/35 SW13
    Unit
    JC6-KB 8x55/5 SW13 9650071978 50.0 55.0 60.0 8.0 50

    Specifications

    Embedment depth hef≥
    50.0
    Length
    55.0
    Drill hole depth
    60.0
    Pilot Hole Ø
    8.0
    Orderidentifier
    JC6-KB 8x55/5 SW13
    Unit
    50
    JC6-KB 10x90/35/5 SW15 A4 9650071933 55.0 90.0 65.0 10.0

    Specifications

    Embedment depth hef≥
    55.0
    Length
    90.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    10.0
    Orderidentifier
    JC6-KB 10x90/35/5 SW15 A4
    Unit
    JC6-KB 10x100/45/15 SW15 A4 9650071934 55.0 100.0 65.0 10.0

    Specifications

    Embedment depth hef≥
    55.0
    Length
    100.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    10.0
    Orderidentifier
    JC6-KB 10x100/45/15 SW15 A4
    Unit
