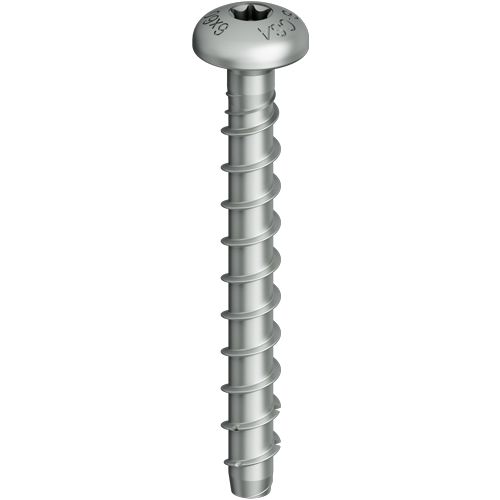

EJOT® Concrete screw JC6-FR stainless steel A4

Specification

  • Applications

    • For embedment in cracked and non-cracked concrete C20/25 – C50/60
    • Permanently wet indoor use
    • Outdoor use, including industrial and maritime environments
    • Fastening of e.g.:
      • Canopies
      • Gates
      • Shelving systems
      • Cable trays
      • Handrails and railings
      • Stadium seating
      • Impact protection / ram protection
      • Timber construction accessories (e.g. brackets, ...)
      • ...
  • Properties

    • Stainless steel A4 with hardened steel tip
    • Pan head and T-drive
    • ETA approved for cracked and non-cracked concrete C20/25 – C50/60
    • Concrete screws are intended for through installations
    • No predefined tightening torque

    Benefits

    • Requires only a small drill hole
    • Allows small spacing and edge distances
    • The screw is fully removable

    Base materials

    Approved for

    • Cracked concrete
    • Non-cracked concrete
  • Technical specifications

    • Drive: T30
    • Fireresistenz: R120
    • Stainless steel

Filter

Selected filters

    Orderidentifier Article Number Embedment depth hef≥ mm Length mm Drill hole depth mm Pilot Hole Ø mm Unit
    JC6-FR 6x50/5 T30 A4 9650071993 45.0 50.0 55.0 6.0

    Specifications

    Embedment depth hef
    45.0
    Length
    50.0
    Drill hole depth
    55.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-FR 6x50/5 T30 A4
    Unit
    JC6-FR 6x60/15/5 T30 A4 9650071994 45.0 60.0 55.0 6.0

    Specifications

    Embedment depth hef
    45.0
    Length
    60.0
    Drill hole depth
    55.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-FR 6x60/15/5 T30 A4
    Unit
    JC6-FR 6x80/35/25 T30 A4 9650071996 45.0 80.0 55.0 6.0

    Specifications

    Embedment depth hef
    45.0
    Length
    80.0
    Drill hole depth
    55.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-FR 6x80/35/25 T30 A4
    Unit
